Application of Metal Fiber Filter Bag in Alumina Plant

What Role Do Metal Fiber Filter Bags Play in Reducing Alumina Plant Emissions?


The menace of smog, a visible marker of air pollution, has catapulted the issue of atmospheric contamination into the forefront of global concern. This heightened awareness has led to a clamor for stricter environmental emissions standards, particularly for industries known for their substantial pollution footprints, such as alumina plants. These facilities, integral to the production of aluminum, are now under the microscope, tasked with implementing rigorous pollution control measures. In areas densely packed with development or those with delicate ecological balances, the imperative to curtail pollutants has never been more critical. As the drumbeat for environmental conservation grows louder, the regulatory landscape tightens, casting a wider net over areas requiring stringent emissions oversight.

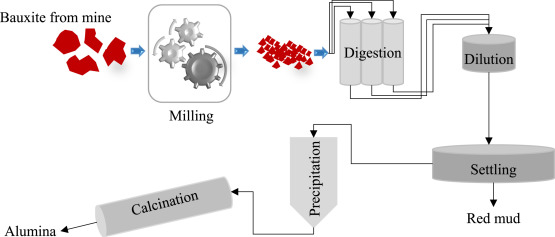

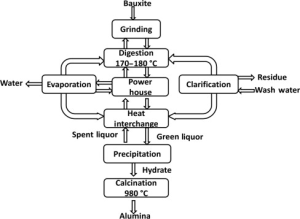

The path to alumina involves an alkaline process, with the Bayer, sintering, and combined methods standing out as the principal approaches. These processes hinge on the nature of the bauxite ore, with the calcination of aluminum hydroxide emerging as a critical phase in the production sequence. This phase is notable for generating high-temperature flue gases, primarily emanating from venturi dryers. An established strategy for maximizing residual heat involves the counter-current flow of hot flue gases against the aluminum hydroxide, facilitating the drying and calcination processes. This procedure not only optimizes heat usage but also ensures the separation of processed alumina from the gases in a thermal separator. Following heat exchange and dust purification, the cooled gases are then released into the atmosphere through emission control systems.

Historically, the burden of managing these emissions has fallen on electrostatic precipitators, capable of processing vast amounts of flue gas with controlled emission concentrations. Despite their efficacy, the high operational costs, variable efficiency, and spatial constraints for retrofitting these systems pose significant challenges, especially against the backdrop of increasingly stringent dust emission standards. The quest for solutions that consistently keep particulate emissions below 10mg/m3 has led to the reconsideration of traditional methods, particularly in light of the unique challenges posed by the flue gases from aluminum hydroxide calcination furnaces.


The dilemma intensifies under conditions that see gas temperatures soar beyond normal operating ranges, making conventional dust removal technologies ineffective due to the risk of damage from transient or sustained high temperatures. Herein lies the potential of metal fiber filter bags, which emerge as a viable solution capable of addressing these challenges head-on. Distinguished by their resilience to high temperatures, corrosion resistance, and exceptional filtration accuracy, these filter bags promise to revolutionize emissions control in alumina plants. They offer the dual benefits of maintaining operational integrity under extreme conditions and achieving ultra-low particulate emissions, thereby aligning with the evolving environmental mandates and reinforcing the industry’s commitment to sustainable operations.

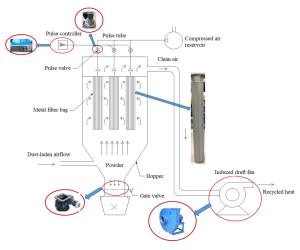

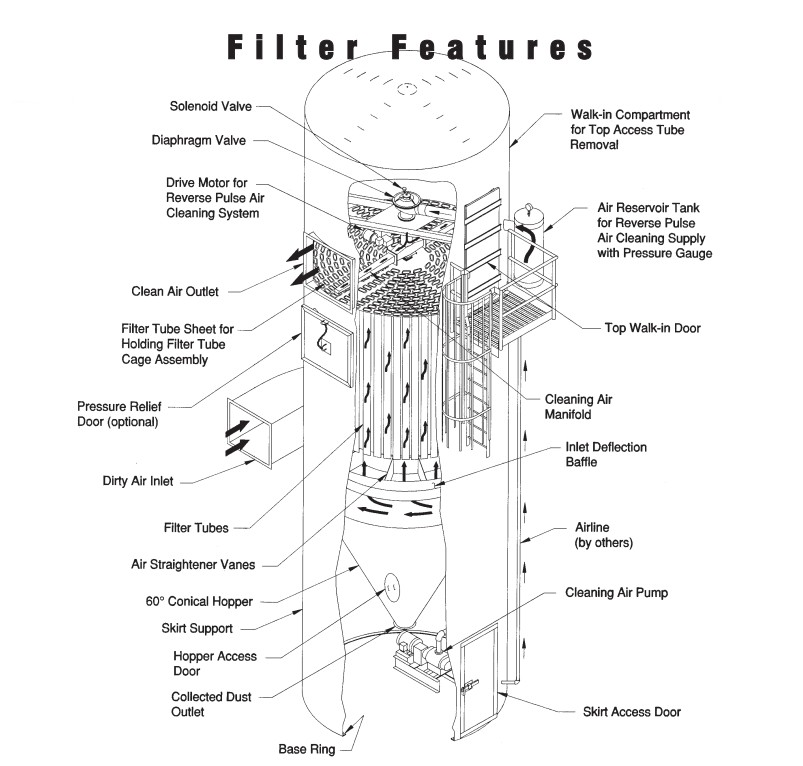

Metal fiber bag dust collector principle


Within the intricate processes of an alumina plant, the role of the metal fiber bag dust collector emerges as a critical component in maintaining environmental compliance and operational efficiency. This system’s operation is a testament to engineering innovation, blending physical and mechanical principles to achieve exceptional dust control.

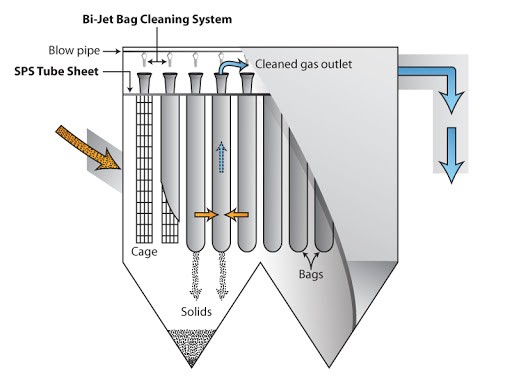

As dusty gases enter the dust collector from the inlet duct, they embark on a journey through a carefully designed system aimed at maximizing dust capture while minimizing resistance. Initially, larger and denser dust particles succumb to gravity, settling in the hopper located at the bottom of the unit. This gravity-based separation serves as the first line of defense, effectively reducing the load on the subsequent filtration stages.

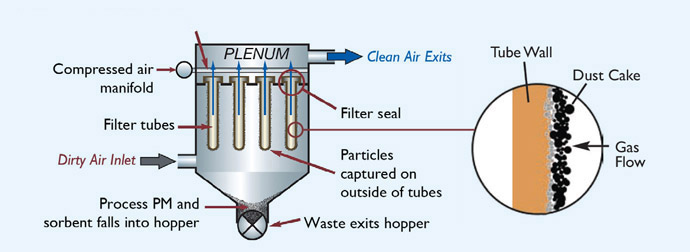

The finer, lighter particles that escape this initial capture proceed to the bag chamber, where the real finesse of the metal fiber bag filter is showcased. Here, a combination of forces—ranging from inertia and collision to screening, interception, and electrostatic attraction—work in concert to ensure these elusive particles adhere to the surface of the metal fiber filter bags. This multi-layered approach to filtration underscores the system’s ability to tackle a wide range of particle sizes and types, ensuring thorough purification of the gas stream.


The purified gas then makes its way into the clean air chamber and is eventually expelled through the outlet duct, leaving behind a significantly cleaner emission than was originally introduced. However, the process does not end with filtration. The system’s efficiency is maintained through a regular cleaning cycle triggered by either time or pressure differential. When the dust layer on the filter bags reaches a critical thickness, contributing to increased resistance, the dust collector’s pulse cleaning system springs into action. A swift, powerful blast of compressed air is injected into the bag, dislodging the accumulated dust and causing it to fall into the hopper below. This pulse-jet cleaning method is pivotal in ensuring the longevity and effectiveness of the filtration system, allowing for continuous operation without the need for frequent manual intervention.


The collected dust, now removed from the filter bags, is conveyed out of the system by the ash removal system, ensuring a clean, closed-loop process. This final step in the dust collector’s operation not only signifies the system’s efficiency in dust removal but also highlights its contribution to the overall sustainability of plant operations.


In essence, the metal fiber bag dust collector stands as a beacon of modern dust control technology. Through its adept combination of gravity settling, complex filtration mechanics, and efficient cleaning cycles, it ensures that alumina plants can meet stringent environmental standards while maintaining operational efficiency, heralding a new era in industrial dust control.


How Does the Metal Fiber Bag Filter Revolutionize Dust Removal in Alumina Production?


The innovative fusion of electrostatic precipitators with metal fiber bag filters represents a pivotal advancement in dust removal technology. This hybrid system leverages the strengths of both components to achieve a highly efficient and ultra-low emission purification process. Initially, as flue gases pass through the electrostatic section, a substantial portion of the dust is captured. The remaining particles, still suspended in the gases, are then efficiently filtered out in the bag section, ensuring a thorough purification that surpasses traditional methods.

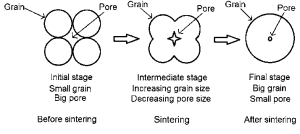

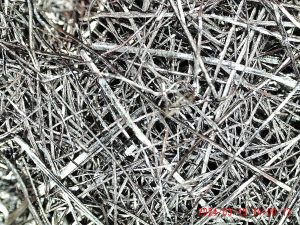

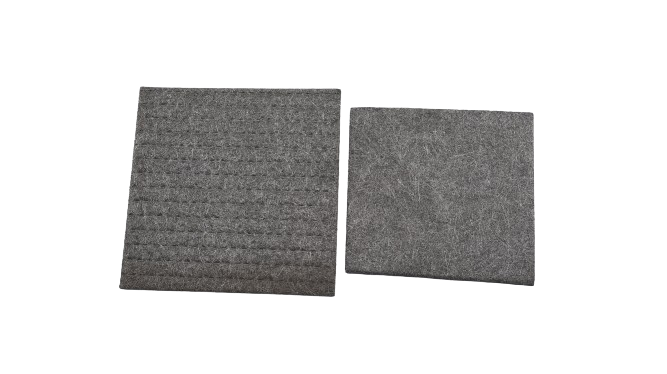

At the heart of this system lies the metal fiber filter bag, crafted from sintered metal fiber felt. This material is produced through a meticulous process where micron-sized metal fibers are non-woven, layered, and then sintered at high temperatures. This results in a filter medium that not only boasts superior durability but also exceptional filtration capabilities.

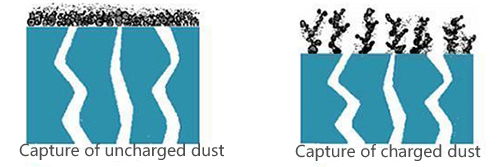

The operational mechanism of this hybrid filter draws on the principle of electrostatic precipitation followed by mechanical filtration. The preliminary electrostatic stage significantly reduces the dust load by collecting 80% to 90% of particles. The charged dust particles that escape capture undergo electrocoagulation, enhancing their removal in the subsequent bag filtering stage. This two-step process allows for the use of higher filtration velocities in the bag section, thus reducing the number of filters required and, consequently, the overall investment cost. Despite this, the system maintains a low resistance during operation, ensuring efficiency and longevity.

The characteristics of the metal fiber bag filter system are manifold:

  1. The system is a composite of electrostatic and bag filtration technologies, harnessing the high efficiency of electrostatic dust collection and the high precision of bag filtration. This combination ensures reliable technology with a resistance of no more than 1000Pa.
  2. Its ability to operate effectively and efficiently over the long term, regardless of the flue gas characteristics, sets it apart. The system excels in capturing fine and ultrafine particles, consistently maintaining emission concentrations below 10mg/m3. This level of performance highlights its effectiveness and stability.
  3. The utilization of innovative metal fiber filter bags, resistant to high temperatures and corrosion, offers high filtration accuracy, low operational resistance, extended lifespan, and the possibility of regeneration. The unique structure of dust accumulation on the filter surface facilitates easy cleaning and prolongs the cleaning intervals, contributing to the bags’ longevity.

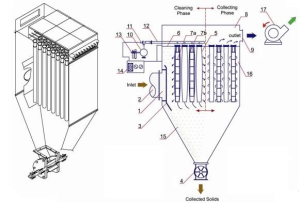

In transforming an existing electrostatic precipitator into a metal fiber bag filter system, the original structure, including the steel frame, hopper, and shell, is retained to minimize costs and construction time. The challenges addressed include the wide temperature fluctuations of the flue gases and the high humidity levels that could lead to bag clogging and complicate dust removal. Solutions include ensuring tight sealing of the casing to maintain a low leakage rate and implementing insulation measures to prevent condensation.


The airflow distribution within the metal fiber bag filter is meticulously organized to reduce structural resistance and extend the life of the filter bags. Newly built projects often adopt a middle horizontal inlet approach, distributing the dusty flue gas evenly and reducing the direct impact on the filter bags. For retrofit projects, modifications based on airflow tests or simulations ensure that the airflow is evenly distributed, enhancing particle removal efficiency.

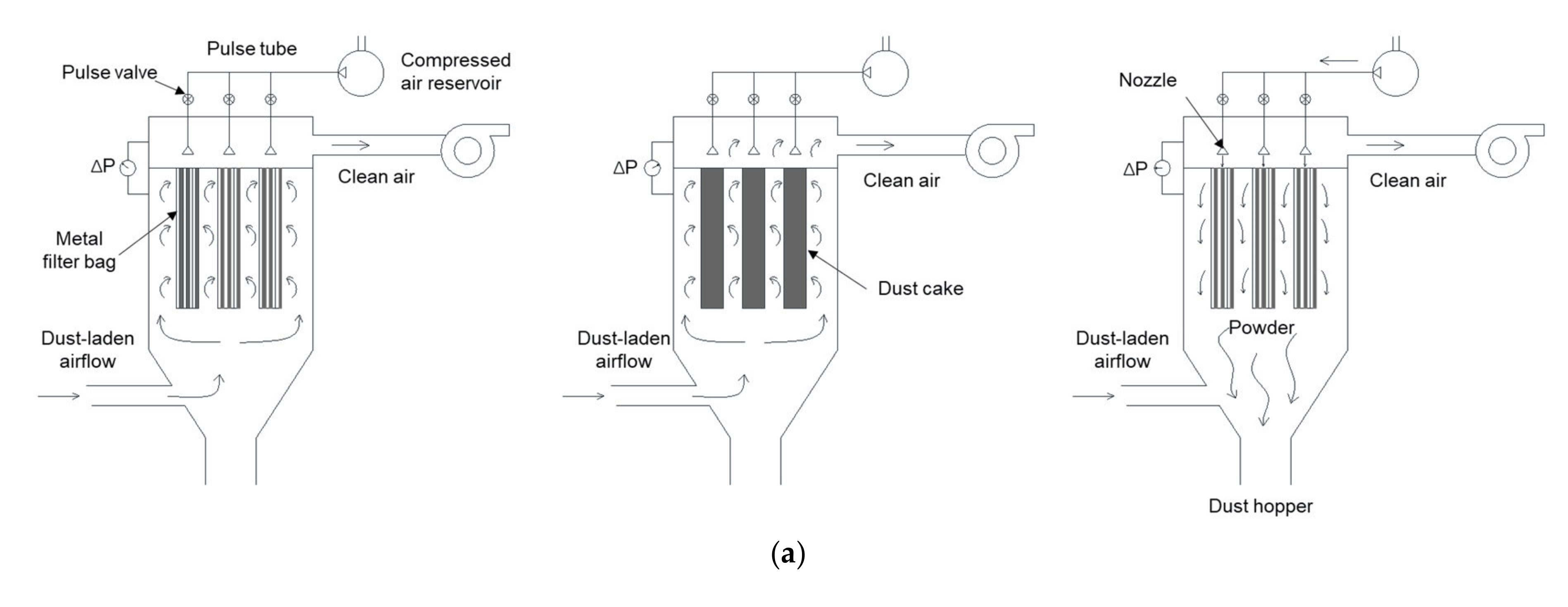

Efficient pulse-jet cleaning, controlled by a PLC, ensures the filter operates at low resistance, facilitating both online/offline and timed/resistance-based cleaning modes. The design considers the thermal expansion due to the high operational temperatures, ensuring structural integrity and the smooth operation of the equipment.


This cutting-edge metal fiber bag filter system not only embodies the merger of electrostatic and mechanical filtration merits but also represents a significant leap forward in achieving ultra-low emissions in alumina plant operations, marking a new era in environmental stewardship and operational efficiency.

Why Are Metal Fiber Bag Filters the Future of Efficient Dust Control?

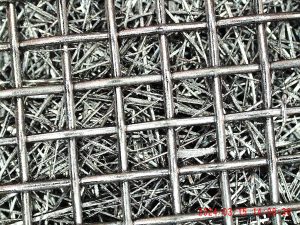

At the core of the metal fiber bag filter’s innovation lies its unique composition. Crafted from sintered metal fiber felt, these filters are designed to withstand extreme temperatures and resist corrosion, offering a robust solution to the challenges of high-temperature flue gas filtration. The use of micron-sized metal fibers, sintered together in a non-woven mesh, provides a filtration medium that is not only highly effective but also durable. This material choice ensures the filter’s high precision in trapping particulate matter, coupled with a significantly reduced operational resistance, extending the filter’s lifespan and enhancing its sustainability through potential regeneration.


The metal fiber bag filter embodies a hybrid approach, merging the high dust collection efficiency of electrostatic precipitators with the meticulous filtering capability of bag filters. By initially passing flue gases through an electrostatic section, up to 90% of dust particles are captured. The remaining particles, now bearing an electric charge, undergo electrocoagulation, which increases their size and facilitates easier removal in the subsequent bag filter stage. This two-tiered approach not only maximizes dust capture but also allows for a higher filtering velocity, optimizing the number of filters needed and thus reducing overall costs.

One of the standout features of the metal fiber bag filter is its ability to maintain long-term stability and high efficiency under varying flue gas conditions. Its performance is notably superior in capturing fine and ultrafine particles compared to traditional electrostatic precipitators, consistently keeping emission concentrations below 10mg/m3. This level of efficiency and stability is particularly advantageous in the context of alumina production, where controlling particulate emissions is critical.


Furthermore, the physical structure of the metal fiber bag filter facilitates an easier and more efficient cleaning process. The loosely structured dust layer formed on the filter surface allows for easy dislodgement and removal of dust during cleaning cycles, extending the operational period between cleanings. This feature, along with the lower operational pressure required for cleaning, significantly prolongs the filter’s service life.


Considering the operational context of alumina plants, where flue gas temperatures can fluctuate dramatically, and humidity levels can pose additional challenges, the metal fiber bag filter emerges as an ideal solution. Its high-temperature tolerance ensures consistent operation even under adverse conditions, while the system’s design minimizes the risk of condensation and clogging, ensuring smooth and efficient dust removal.


Application of Metal Fiber Bag Dust Collectors


The transition towards using metal fiber bag dust collectors in alumina plants represents a transformative shift in addressing the perennial challenge of emissions control. Historically, alumina plants have relied on electrostatic precipitators to manage flue gas particulates, achieving emission levels around 50mg/m3. However, the stringent environmental standards emerging require solutions that offer far greater efficiency and reliability.


Unique operational conditions of alumina plants, particularly during start-up or malfunction scenarios where exhaust gas temperatures can surge to 300°C or above, pose significant challenges for conventional dust collection systems. In such instances, the risk of bag damage in standard fabric filters or electro-bag dust collectors increases substantially, often leading to equipment failure. Some facilities have attempted to mitigate these risks by introducing cooling valves ahead of fabric or electro-bag collectors. Yet, the high moisture content in the gases introduces the risk of clogging, further complicating the matter.


Metal fiber bag dust collectors have emerged as a robust, high-precision, and low-resistance solution capable of enduring the high temperatures typical of alumina production processes. Their successful application in various industries, including power generation, non-ferrous metallurgy, building materials, and new energy sectors, provides a solid foundation for their potential within alumina plants. Theoretically, these systems are well-suited for handling the particulate matter in flue gases from aluminum hydroxide calcination furnaces. For new projects, a mid-level horizontal intake structure can be adopted; for retrofitting, existing electrostatic precipitator frameworks can be optimized and converted into metal fiber bag dust collectors. However, the real-world effectiveness and lifespan of metal fiber filters in this context require empirical validation to refine and promote their broader adoption.


The transition from traditional electrostatic precipitators to metal fiber bag dust collectors within one alumina facility highlights the practical aspects and considerations of such an upgrade. The project retained the first-stage electrostatic field for primary dust removal, with the subsequent fields replaced by bag zones to achieve stable, ultra-low emissions. This redesign leveraged existing structures while introducing key modifications, such as reinforced support frames and the installation of metal fiber filter bags equipped with an efficient pulse jet cleaning system. The result? Post-upgrade emissions fell below 10mg/m3, with the dust collector’s resistance staying under 400Pa—a testament to the success of the retrofit.


Key takeaways for alumina plants considering the adoption of metal fiber bag dust collectors include the importance of ensuring uniform gas flow distribution to prevent direct bag abrasion, installing vibration devices in hoppers for smooth ash removal, and ensuring the filter plate thickness and quality meet stringent standards. Additionally, maintaining the flue gas temperature above the dew point by at least 20°C is crucial for optimal dust collector performance.


The implementation of metal fiber bag dust collectors in alumina plants not only meets the strictest of environmental standards but also showcases the industry’s commitment to sustainable and efficient operations. With continuous innovations and adaptations, these systems promise to redefine the standards of emission control in the alumina production process, offering a glimpse into a cleaner, more compliant future.


Towards a Sustainable Future in Alumina Production


The journey of integrating metal fiber bag dust collectors into the alumina production process marks a significant stride towards environmental stewardship and operational excellence. As this narrative unfolds, it becomes evident that the adoption of such advanced dust control technology not only addresses the immediate challenges of regulatory compliance and environmental protection but also paves the way for sustainable industrial practices.


In confronting the limitations of traditional dust collection systems, alumina plants are compelled to explore innovative solutions that can withstand the rigors of their unique operational environment. The successful application and potential of metal fiber bag dust collectors underscore a commitment to technological advancement and environmental responsibility. These systems offer a beacon of hope, demonstrating that it is indeed possible to balance the demands of production with the imperative of minimizing environmental impact.


In conclusion, the application of metal fiber bag dust collectors in alumina plants represents a pivotal moment in the industry’s history. It embodies the convergence of environmental priorities with technological innovation, setting a new benchmark for industrial emissions control. As we look to the future, the lessons learned and successes achieved in this endeavor will undoubtedly inspire further advancements, driving the alumina production industry towards even greater heights of sustainability and environmental compatibility.
