Sintered wire mesh is often stronger and more efficient than traditional single-layer wire mesh when the application requires stable pore size, high mechanical strength, cleanability, and reliable filtration under pressure. It is made by bonding multiple layers of woven wire mesh under heat and pressure, creating a rigid porous structure that keeps the permeability of mesh while improving durability and filtration stability.
However, sintered wire mesh is not automatically the best choice for every job. It is usually most valuable in demanding filtration and separation systems where strength, pore stability, corrosion resistance, and long service life matter more than the lowest initial cost. This guide explains where sintered wire mesh performs better, where traditional woven mesh may still be enough, and how to choose the right type for industrial filtration.
What Is Sintered Wire Mesh?

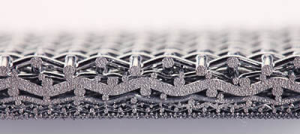

Sintered wire mesh is a multi-layer metal mesh material made by stacking woven wire cloth layers and bonding them together through sintering. During sintering, the mesh layers are heated in a controlled furnace so the wires bond at their contact points without melting the whole structure.
The result is a porous metal sheet with a fixed structure, stable openings, and stronger layer-to-layer bonding than ordinary woven mesh. Because the mesh layers no longer move independently, sintered wire mesh can resist deformation, pressure, abrasion, and repeated cleaning better than many single-layer mesh materials.
How Is Sintered Wire Mesh Made?
Sintered wire mesh is made by layering wire mesh, pressing or laminating the layers, and then bonding them through high-temperature sintering. The process turns loose mesh layers into a single integrated porous structure.
- Layer selection: Different mesh layers are selected according to filtration accuracy, support strength, and flow requirements.
- Stacking: The layers are arranged to combine filtration, protection, drainage, and support functions.
- Pressing or rolling: The layers are compressed so contact points are stable before sintering.
- Sintering: Heat bonds the wires at their contact points, creating a rigid and durable porous plate.

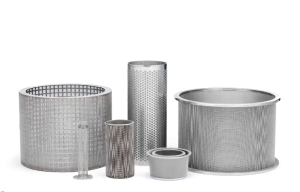

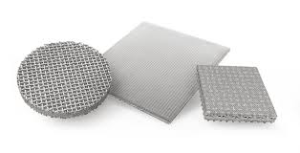

- Finishing: The sintered sheet can be cut, welded, rolled, pleated, or formed into discs, tubes, cartridges, or custom filter components.
This process is the main reason sintered wire mesh has better structural stability than ordinary woven mesh. The openings are less likely to shift under pressure, cleaning, or vibration.
Why Is Sintered Wire Mesh Stronger Than Traditional Wire Mesh?
Sintered wire mesh is stronger because the mesh layers are bonded together into one rigid structure instead of remaining as separate woven wires. In traditional woven mesh, individual wires can shift, deform, or loosen under heavy pressure or repeated use. In sintered mesh, the bonded contact points distribute mechanical stress across multiple layers.
This stronger structure provides several advantages:
- Higher resistance to deformation under pressure
- Better dimensional stability during cutting, welding, or forming
- Improved resistance to vibration, backwashing, and repeated cleaning
- More stable support for fine filtration layers
- Longer service life in demanding industrial systems
This does not mean woven mesh is weak. Woven mesh can be a good choice for simple screening, low-pressure filtration, and flexible applications. Sintered wire mesh becomes the stronger option when the filter must keep its shape and pore structure under harsher operating conditions.
Why Is Sintered Wire Mesh More Efficient for Filtration?
Sintered wire mesh can improve filtration efficiency because its multi-layer structure provides stable pore size, strong support, and controlled flow paths. A single-layer mesh may filter well at first, but its openings can deform or shift if pressure, vibration, or cleaning stress is high.
In sintered wire mesh, different layers can perform different functions. A fine layer can provide particle retention, while coarser layers provide support and drainage. This helps the filter maintain both filtration accuracy and permeability.
Its filtration efficiency depends on the actual mesh structure, layer combination, material, flow rate, fluid viscosity, pressure drop, and particle size. For this reason, sintered wire mesh should be selected according to real process conditions rather than by mesh count alone.
Sintered Wire Mesh vs Traditional Woven Wire Mesh
Sintered wire mesh is usually better for high-strength, high-stability filtration, while traditional woven wire mesh is often better for simple, lower-cost screening or less demanding filtration.
| Factor | Sintered Wire Mesh | Traditional Woven Wire Mesh |
| Structure | Multiple woven mesh layers bonded into one rigid sheet | Single or separate woven mesh layer |
| Strength | Higher structural strength and deformation resistance | Good for many uses, but less rigid under pressure |
| Pore Stability | Openings remain more stable because layers are bonded | Openings may shift if wires move or deform |
| Filtration Precision | Better for stable and repeatable filtration accuracy | Suitable for coarse or general filtration |
| Permeability | Can maintain good flow when the layer structure is properly designed | Often high flow, but with less structural support |
| Cleanability | Often suitable for backwashing, ultrasonic cleaning, or other non-abrasive cleaning methods | Can be cleaned, but may deform more easily depending on mesh type |
| Cost | Higher initial cost | Lower initial cost |
| Best Use | High-pressure, high-temperature, corrosive, cleanable, or precision filtration systems | Simple screening, low-pressure filtration, and cost-sensitive applications |
Key Properties: Strength, Pore Stability, Permeability, and Cleanability
The main performance advantages of sintered wire mesh come from its strength, stable pore structure, permeability, corrosion resistance, and cleanability. These properties explain why it is widely used in demanding filtration systems.
Mechanical Strength
The sintering process bonds multiple wire layers into a single stable sheet. This gives the material better resistance to impact, pressure, vibration, and handling damage than many traditional single-layer meshes.
Pore Stability
Because the wire layers are bonded, the pore structure is more stable. Stable pore size helps maintain repeatable filtration performance, especially in systems where pressure or flow changes over time.
Permeability and Pressure Drop
Sintered wire mesh can provide good permeability when the layer design is properly selected. The goal is to capture target particles while keeping pressure drop within the system’s acceptable range.
Corrosion and Temperature Resistance
Sintered wire mesh is commonly made from stainless steel or other metal alloys. The actual corrosion and temperature resistance depend on the chosen material, such as 304, 316, 316L, or other alloys.
Cleanability and Reuse
In many applications, sintered wire mesh can be cleaned and reused. Depending on the contaminant and filter design, cleaning methods may include backwashing, ultrasonic cleaning, solvent cleaning, or other non-abrasive techniques.
When Is Sintered Wire Mesh the Better Choice?
Sintered wire mesh is the better choice when the filtration system requires strength, stable pore size, corrosion resistance, and repeated cleaning. It is especially useful when ordinary wire mesh may deform, clog too quickly, or lose filtration consistency.
- High-pressure liquid or gas filtration
- High-temperature process filtration
- Chemical and petrochemical filtration
- Food and beverage filtration where cleaning and durability matter
- Pharmaceutical or fine chemical processes requiring stable filtration accuracy
- Water treatment and industrial separation systems
- Applications requiring backwashing or repeated regeneration
When Is Sintered Wire Mesh Not the Best Choice?
Sintered wire mesh may not be the best choice when the application only needs simple, low-cost screening or disposable filtration. Its higher initial cost is easier to justify when the system benefits from long service life, cleaning, pressure resistance, or precision filtration.
- Simple coarse screening with low filtration accuracy requirements
- Low-pressure, non-critical applications where ordinary woven mesh is sufficient
- Applications where the filter is meant to be disposable
- Projects where the lowest initial material cost is the main requirement
- Uses that need very flexible mesh rather than a rigid porous structure
Applications of Sintered Wire Mesh
Sintered wire mesh is used in industries where filtration media must resist pressure, corrosion, heat, and repeated cleaning while maintaining stable filtration performance.
Chemical and Petrochemical Processing
In chemical and petrochemical systems, sintered wire mesh can handle demanding separation tasks where corrosion resistance, pressure resistance, and cleanability are important.
Pharmaceutical and Fine Chemical Filtration
Applications that require stable filtration accuracy can benefit from sintered wire mesh because its pore structure is less likely to shift during operation.
Food and Beverage Filtration
Food and beverage processes often require durable, cleanable filtration media. Sintered wire mesh can support repeated cleaning cycles when the selected material and filter design are compatible with the process.
Water Treatment and Industrial Separation
In water treatment and industrial separation, sintered wire mesh can be used where long service life, stable flow, and resistance to clogging or deformation are important.
How to Choose the Right Sintered Wire Mesh
To choose the right sintered wire mesh, match the mesh structure, material, filtration rating, and flow performance to the actual operating conditions. Selection should be based on both strength and efficiency, not only on mesh count.
Selection Checklist
- Target particle size or required filtration accuracy
- Operating fluid: liquid, gas, chemical, oil, water, steam, or process media
- Required flow rate and acceptable pressure drop
- Working pressure and temperature
- Material requirement: 304, 316, 316L, or other alloy
- Corrosion resistance and chemical compatibility
- Cleaning method: backwashing, ultrasonic cleaning, solvent cleaning, or replacement
- Form factor: sheet, disc, tube, cartridge, cone, or custom shape
- Mechanical load, vibration, and installation method
- Expected service life and maintenance schedule
For high-performance filtration, the best choice is usually the mesh that maintains filtration accuracy and flow while surviving the process environment for the required service life.
FAQs About Sintered Wire Mesh Strength and Efficiency
1. Is sintered wire mesh stronger than woven wire mesh?
Yes, in demanding applications, sintered wire mesh is usually stronger because multiple mesh layers are bonded into one rigid structure. This improves resistance to deformation, pressure, vibration, and repeated cleaning.
2. Why does sintered wire mesh have better filtration stability?
Its bonded multi-layer structure helps keep pore openings stable during operation. Stable pore size supports more repeatable filtration accuracy than a single woven layer that may shift or deform.
3. Does sintered wire mesh always have better flow?
Not always. Flow depends on layer design, pore structure, thickness, fluid viscosity, pressure, and contaminant load. Properly designed sintered wire mesh can balance filtration accuracy with permeability.
4. Can sintered wire mesh be cleaned and reused?
In many applications, yes. Sintered wire mesh is often suitable for cleaning methods such as backwashing, ultrasonic cleaning, or solvent cleaning, depending on the contaminant, material, and filter design.
5. Is sintered wire mesh worth the higher cost?
It can be worth the higher initial cost when the system needs longer service life, stable filtration accuracy, pressure resistance, and repeated cleaning. For simple low-cost screening, ordinary woven mesh may be enough.
6. What industries use sintered wire mesh?
Sintered wire mesh is used in chemical processing, petrochemical systems, pharmaceutical production, food and beverage filtration, water treatment, gas filtration, and other industrial separation processes.
Conclusion: Is Sintered Wire Mesh Superior in Strength and Efficiency?
Sintered wire mesh is superior in strength and filtration efficiency when the application requires stable pore size, strong mechanical support, cleanability, and reliable performance in demanding conditions. Its sintered multi-layer structure gives it better deformation resistance and more stable filtration behavior than many traditional single-layer wire meshes.
Still, the word “superior” depends on the application. For simple, low-cost, low-pressure screening, woven wire mesh may be a practical choice. For high-pressure filtration, corrosive fluids, high-temperature processes, repeated cleaning, or precision particle retention, sintered wire mesh is often the stronger and more efficient solution.
