Full Guide About What Is Sintered Metal Filter?

Introduction to Sintered Metal Filters

Sintered metal filters represent a state-of-the-art filtration solution, crafted through a distinctive process that employs metal powders formed under heat and pressure to create a rigid, porous structure. These filters, celebrated for their robustness, longevity, and effective filtration capabilities, are indispensable across a multitude of industrial applications.

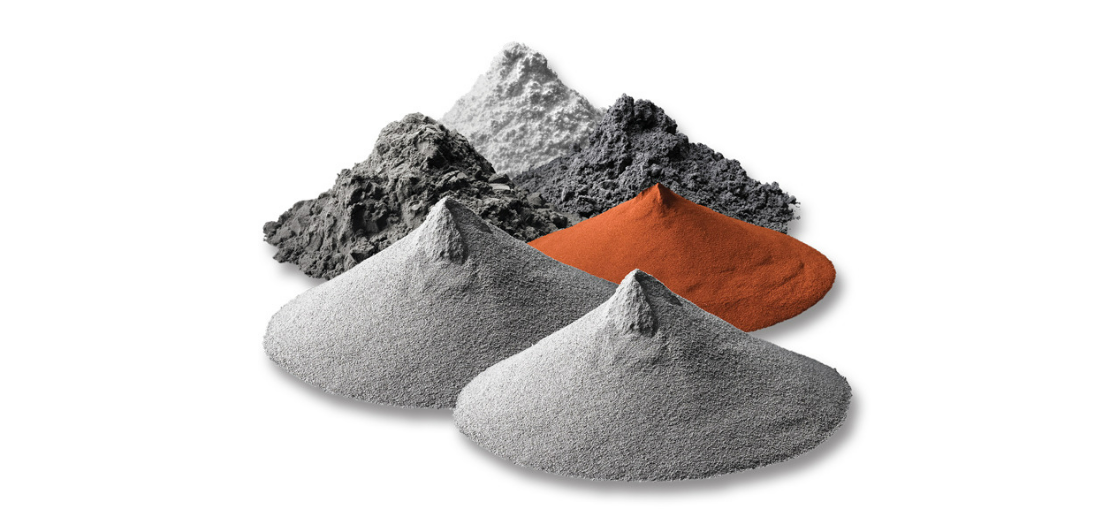

The journey of creating a sintered metal filter begins with the selection of specific metal powders, which are carefully compacted in a mold under significant pressure. This compacted metal preform is then subjected to a high-temperature process known as sintering but below the melting point of the metal. The heat fuses the particles together and strengthens the structure while maintaining its porosity. This intricate process ensures the creation of a fixed pore structure, offering uniformity that is crucial for precise filtration tasks.

One of the remarkable attributes of sintered metal filters is their exceptional durability. They stand resilient against corrosive environments, high temperatures, and extreme pressure conditions, which are common challenges in various industrial settings. This resilience translates into fewer replacements, reduced downtime, and, consequently, cost savings over the product’s lifecycle.

The uniform pore structure achieved through the sintering process is pivotal in the filter’s performance, enabling the efficient filtration of both liquids and gases. The pores, engineered to exact dimensions, ensure consistent flow rates and provide precise control over particle retention, contributing to the high reliability of separation processes. Furthermore, these filters can be cleaned and reused, adding an eco-friendly aspect to their long list of benefits.

Sintered metal filters find their applications in diverse sectors, including the petrochemical, pharmaceutical, food and beverage, and environmental technology industries. They are pivotal in scenarios that demand sterile filtration, precise fluid control, and removal of particulates from gases and liquids. Their versatility is also evident in their availability in various forms, such as discs, cartridges, or custom-designed elements to fit unique equipment specifications.

What is Sintering?

Sintering, a crucial process in materials engineering, involves the heating of powdered materials (typically, though not exclusively, metal powders) below their melting points to facilitate the formation of a single solid mass.

 Unlike melting, sintering does not liquefy the material. Instead, it promotes particle bonding through a combination of heat and pressure, ensuring the solid-state diffusion of the particles.

During the sintering process, the powdered material is first shaped into the desired form, often through a pressing process. This “green” compact is then exposed to high temperatures in a controlled atmosphere, initiating a series of microscopic events.

These include the removal of pressing aids (if used), reduction in the surface area through neck formation between particles, and pore rounding and growth, all of which contribute to an increase in the material’s strength and structural integrity.

The heating process leads to bonding at the contact points between particles, creating a strong, cohesive structure with interconnected porosity that can be fine-tuned by adjusting the sintering conditions and powder characteristics.

Advantages of Sintered Metal Filters

Sintered metal filters offer several advantages over other types of filters:

  • High Filtration Efficiency: The uniform pore structure of sintered metal filters allows for efficient filtration of particles down to submicron sizes.
  • Durability: Sintered metal filters are highly resistant to corrosion, high temperatures, and mechanical stress, making them suitable for demanding applications.
  • Chemical Compatibility: These filters can withstand exposure to a wide range of chemicals without degradation, ensuring long-term performance.
  • Ease of Cleaning: Sintered metal filters can be easily cleaned and reused, reducing maintenance costs and waste generation.
  • Customizability: The pore size, shape, and thickness of sintered metal filters can be tailored to meet specific filtration requirements.

Applications of Sintered Metal Filters

Sintered metal filters, renowned for their superior filtration capabilities and robustness, are integral across a variety of industries. Their unique construction allows them to perform under conditions that would be challenging for other types of filters. Here, we delve into the specific applications in different sectors:

1. Oil and Gas Industry

Within the demanding environments of the oil and gas sector, sintered metal filters stand out for their resilience and efficiency. They are instrumental in purifying natural gas, crude oil, and other petrochemical fluids by removing various contaminants, including sand, rust, and solid particulates that could otherwise compromise the quality or safety of these resources.

 Their ability to withstand high pressures and temperatures, and their resistance to various chemical agents, make them invaluable in ensuring smooth operations and prolonging the lifespan of equipment.

2. Chemical Processing

The chemical processing industry often involves handling corrosive liquids and gases, and sintered metal filters rise to the challenge with their exceptional chemical resistance. They are crucial in filtering aggressive substances, and efficiently removing particles without risking degradation.

Their consistent performance, high flow rates, and low-pressure drops are essential in maintaining continuous production lines, preventing contamination, and ensuring the purity of the end products.

3. Water Treatment

In water treatment facilities, sintered metal filters contribute significantly to the purification processes. They are adept at eliminating impurities, bacteria, and suspended solids from water, making it safe for various uses.

durability is particularly beneficial given the harsh chemical and physical conditions they encounter, including exposure to chlorine, bacterial elements, and high-pressure flows. Additionally, their ability to be cleaned and reused makes them an environmentally friendly and cost-effective solution.

4. Pharmaceutical Industry

The pharmaceutical industry requires stringent sterility and purity standards, and sintered metal filters are pivotal in achieving these. Employed in the filtration of liquids and gases during drug manufacturing, they eliminate contaminants and microorganisms, ensuring the safety and efficacy of pharmaceutical products.

Their reliability, combined with their resistance to sanitization and sterilization processes, makes them indispensable in this highly regulated sector.

5. Food and Beverage Industry

Safeguarding the quality of food and beverages is paramount, and sintered metal filters are key players in this realm. They are used to filter liquids during various stages of food and beverage production, from initial ingredient processing to final packaging.

These filters help remove particles, bacteria, and other impurities from products such as dairy goods, juices, and alcoholic beverages, thereby ensuring flavor integrity, safety, and shelf life. Their ability to meet rigorous hygiene standards and withstand cleaning and sterilization processes aligns perfectly with the industry’s requirements.

In conclusion, sintered metal filters are versatile assets in numerous industrial applications, chosen for their durability, efficacy, and reliability in crucial filtration processes. Their role in safeguarding product quality and promoting operational efficiency continues to make them an irreplaceable component in these sectors.

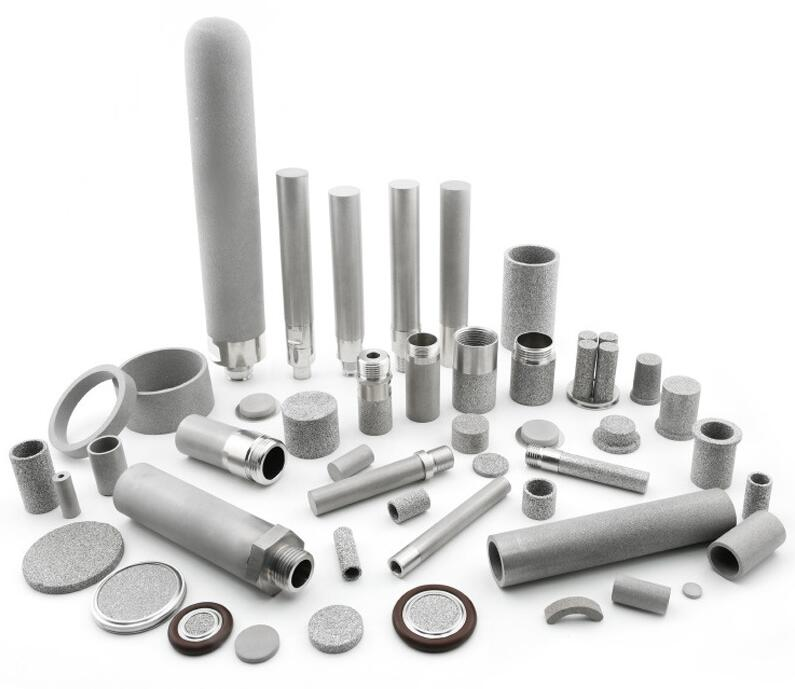

Types of Sintered Metal Filters

There are different types of sintered metal filters available, each designed for specific applications.

Some common types include:

1. Stainless Steel Sintered Filters

Renowned for their resilience, stainless steel sintered filters provide excellent resistance to corrosion, making them ideal for harsh environments where they’re exposed to aggressive chemicals or high temperatures.

Their robust mechanical strength ensures they maintain integrity under high pressure, and their thermal stability allows for use in extreme heat applications. Industries such as petrochemical, pharmaceutical, and food and beverage favor these filters for their durability and the assurance of purity in their processes.

2. Bronze Sintered Filters

Bronze sintered filters, appreciated for their fine filtration capabilities, are prominent in scenarios requiring high filtration efficiency coupled with good thermal conductivity. They present a lower risk of sparking, making them suitable for explosive environments.

Commonly utilized in the automotive industry, these filters play a critical role in purifying fuels and lubricating oils, ensuring smooth engine performance and extended machinery life.

3. Nickel-Sintered Filters

For environments characterized by extreme temperatures and corrosive substances, nickel-sintered filters are the go-to option. They boast an exceptional resistance to heat, maintaining performance at temperatures where other materials might degrade.

Their superior chemical compatibility makes them ideal for use in the chemical industry, particularly in applications involving corrosive fluids and gases, safeguarding processes from contamination and equipment from premature wear. They are used in applications involving corrosive fluids and gases.

4. Titanium-Sintered Filters

When it comes to environments with highly aggressive chemicals or the need for seawater filtration, titanium-sintered filters are unmatched.

They offer extraordinary corrosion resistance, even in the presence of substances like chlorides and acidic solutions, making them perfect for marine applications or chemical processing industries.

Despite their lightweight structure, they provide immense strength, ensuring longevity and reliability.

5. Porous Plastic Sintered Filters

Porous plastic sintered filters, typically made from materials like high-density polyethylene or polypropylene, are celebrated for their combination of lightweight characteristics, cost-effectiveness, and chemical resistance.

 They are inert to most acids and alkalis, providing reliable performance in corrosive environments. Additionally, their hydrophobic properties make them ideal for applications requiring moisture control. These filters are widely used in the medical, pharmaceutical, and chemical industries for various filtration applications, contributing to their safety and efficiency protocols.

In summary, the diverse range of sintered metal filters caters to a broad spectrum of industrial needs, each type offering specific properties that make them indispensable in their respective applications. From high-temperature operations to corrosive environments, these filters continue to be foundational components in maintaining quality, efficiency, and safety in production processes.

Factors to Consider When Choosing a Sintered Metal Filter

When selecting a sintered metal filter for a specific application, several factors should be considered:

1. Filtration Efficiency

Filtration efficiency is paramount, directly impacting the quality of the end product. It’s essential to understand the nature of the contaminants involved – their size, shape, and concentration.

The pore size of the filter must be fine enough to capture particles effectively, yet sufficiently permeable to maintain an acceptable flow rate. Additionally, the structural integrity of the filter contributes to consistent performance, preventing the bypass of unfiltered material or the shedding of filter media into the clean output.

2. Chemical Compatibility

In environments where the filter is exposed to aggressive chemicals, selecting a material that withstands corrosive substances without degrading is crucial. Incompatible materials can lead to filter failure, contamination, and even hazardous situations.

Understanding the chemical composition of the fluids or gases being processed allows for the selection of a filter material—be it stainless steel, titanium, or another—that offers optimal resistance to chemical attack, thereby ensuring longevity and reliability.

3. Temperature and Pressure

Operational conditions can vary greatly, and the chosen filter must perform under the specific temperature and pressure conditions it will encounter. High temperatures can alter the filter’s material properties, while excessive pressure differentials can lead to mechanical failure.

 Therefore, the filter’s material and design should be robust enough to withstand these factors without deforming, cracking, or failing, ensuring continuous, reliable operation.

4. Flow Rate

Balancing filtration efficiency with flow rate is essential for maintaining operational efficiency. The filter must accommodate the system’s required flow rate, ensuring particles are effectively removed without significantly impeding the flow of fluid or gas.

 Excessive pressure drops across the filter can indicate clogging or an undersized filter, both of which can strain the system and reduce efficiency. Selecting a filter with an appropriate pore size and configuration can help maintain the desired flow rate while achieving the required filtration efficiency.

5. Maintenance and Cleaning

Operational efficiency includes minimizing downtime for maintenance and cleaning. Sintered metal filters that are easily disassembled, cleaned, and reassembled can significantly reduce operational pauses and associated costs.

 Additionally, some sintered filters can be cleaned in situ through backflushing or other techniques. Considering the ease of cleaning and the ability to withstand repeated cleaning cycles without damage is essential for selecting a filter that will contribute to the system’s overall cost-effectiveness and long-term performance.

In conclusion, selecting the appropriate sintered metal filter requires a comprehensive understanding of the application’s specific needs. Each factor, from filtration efficiency to maintenance requirements, plays a crucial role in determining the filter’s suitability. A well-chosen filter will enhance process reliability, ensure product quality, and contribute to the system’s overall operational efficiency and safety.

Maintenance and Cleaning of Sintered Metal Filters

To ensure optimal performance and longevity of sintered metal filters, regular maintenance and cleaning are essential.

Here are some guidelines for maintaining and cleaning these filters:

1. Regular Inspection

Routine inspections are the frontline defense in maintaining filter integrity. It’s not just about looking for evident physical damage, but also monitoring for decreased performance, which could signify clogging or partial blockages.

Regular checks of the pressure drop across the filter can indicate a buildup of contaminants; an increase beyond the manufacturer’s recommended limits signals it’s time for cleaning or replacement. Additionally, visual inspections can reveal cracks, wear, or corrosion, which could compromise filter effectiveness and even lead to system contamination.

2. Backwashing

Backwashing serves as a primary method for cleaning reusable sintered metal filters. This process involves reversing the flow through the filter to remove entrapped particles.

 Using compressed air, water, or another fluid compatible with the filter material and the filtrate, backwashing dislodges particles from the filter’s pores.

The effectiveness of backwashing depends on factors such as the tenacity of the particles, their size relative to the pore size, and the filter’s design. Regular backwashing as part of a maintenance schedule can significantly extend the filter’s service life.

3. Ultrasonic Cleaning

For contaminants that are firmly adhered to the filter or embedded within its pores, ultrasonic cleaning offers a solution. This method uses a bath of suitable cleaning fluid combined with ultrasonic waves to create cavitation bubbles.

 The implosion of these bubbles produces intense local scrubbing action, dislodging stubborn contaminants. It’s a gentle yet effective method that can reach all surfaces and pores of the filter, but care must be taken to select a cleaning fluid that won’t react adversely with the filter material.

4. Chemical Cleaning

When filters are used in applications involving tenacious or chemically reactive contaminants, standard cleaning methods might not suffice. Chemical cleaning involves the use of specific solvents or solutions that can dissolve or react with the contaminants without harming the filter material itself.

The choice of chemical cleaning agents must be made with an understanding of the filter’s material compatibility to prevent degradation. It’s also crucial to thoroughly rinse the filter after chemical cleaning to remove any residual cleaning agents that could contaminate the filtrate.

5. Drying and Reassembly

Once the filter is cleaned, it’s crucial to dry it thoroughly, especially if water-based cleaning methods are used. Any moisture left can lead to corrosion, bacterial growth, or, in high-temperature applications, steam formation that could damage the filter.

 During reassembly, care must be taken to ensure seals are properly seated, components are correctly aligned, and everything is tightened to the manufacturer’s specifications. This prevents leaks, bypassing, or the introduction of unfiltered contaminants into the system.

In conclusion, each step in the maintenance and cleaning process is essential to uphold the functionality and extend the lifespan of sintered metal filters. A well-maintained filter ensures consistent performance, quality output, and reduced operational costs. Always refer to and follow the manufacturer’s guidelines for specific procedures and recommendations.

Wrap Up

Sintered metal filters stand as multifaceted and dependable options for filtration needs across diverse industries. These robust devices excel due to their intrinsic qualities, which include superior filtration precision, long-lasting durability, and an impressive ability to withstand a variety of chemical interactions. These attributes render them not only adaptable but also invaluable in numerous critical applications.

Their high filtration efficiency stems from their porous structure, meticulously engineered to trap contaminants—both particulate and molecular—without impeding necessary flow rates. This balance between flow and filtration is critical in industries where purity must be matched with productivity. The durability of sintered metal filters, owing to their metallic construction, allows them to operate effectively in environments that are mechanically, thermally, or chemically harsh, providing reliability where other filter types might fail.

The chemical compatibility of these filters is another significant advantage, as they can be employed in processes involving corrosive or otherwise aggressive chemicals without the risk of degradation. This feature is particularly important in industries such as chemical processing, oil and gas, and pharmaceuticals, where maintaining the integrity of the filtrate is paramount.

Selecting the most suitable sintered metal filter requires a comprehensive understanding of the available options. Factors to consider include filtration efficiency, directly linked to the specific particle sizes and types the application needs to address; chemical compatibility, determined by the nature of the substances to be filtered; and operational parameters like temperature, pressure, and flow rate. Furthermore, the ease of maintenance and the potential for cleaning and reuse are practical considerations that can significantly impact operational costs and downtime.

The importance of regular maintenance cannot be overstated in ensuring the ongoing efficacy and longevity of these filters. Through routine inspections, timely cleaning, and appropriate care during reassembly, performance can be maintained, and the operational lifespan of the filters can be extended. Techniques such as backwashing, ultrasonic cleaning, or chemical cleaning might be employed based on the nature of the accumulated contaminants and the filter material. Each method has its own merits and should be chosen after careful assessment of the specific circumstances.

In conclusion, sintered metal filters are more than just tools for impurity removal; they are integral components in the optimization of production and processing across industries. Their versatility and reliability, coupled with their high performance and adaptability to various harsh conditions, position them as indispensable assets in achieving efficiency, safety, and quality in industrial outputs. Understanding and respecting their operational and maintenance needs not only enhances performance but also contributes to cost-effective and sustainable operational practices.

let Saifilter’s expertise guide you to the perfect micron-rated filter today. Your journey toward purity is just one click away. Choose Saifilter for a safer, cleaner liquid now!
