A demister pad should be specified using both process data and physical design parameters. The key information includes vessel dimensions, gas flow rate, gas velocity, liquid load, droplet size, target removal efficiency, allowable pressure drop, operating temperature, material compatibility, pad thickness, mesh density, wire diameter, support structure, and installation constraints.
These parameters work together. Selecting a demister pad based only on vessel diameter or pad dimensions does not provide enough information to define the required filtration structure. Gas and liquid conditions must be considered together with the physical construction of the pad.
For a broader explanation of separation principles, demister types, and industrial uses, refer to our guide to how demister pads work and where they are used. This article focuses specifically on the data and design parameters required when specifying a demister pad.
What Information Is Required to Specify a Demister Pad?
A complete demister pad specification normally contains two groups of information: process conditions and physical design data.
Process conditions describe what the demister must handle during operation. Physical design data defines how the pad must be constructed and installed inside the vessel or equipment.
| Specification Parameter | Data to Confirm | Why It Matters |
|---|---|---|
| Vessel dimensions | Inside diameter, available height, installation opening, support location | Defines pad dimensions and installation constraints |
| Gas flow rate | Minimum, normal, and maximum operating flow | Used to determine operating gas velocity |
| Gas properties | Density, temperature, pressure, and composition | Influences gas velocity and separation conditions |
| Liquid load | Quantity of entrained liquid and expected drainage rate | Affects drainage capacity and flooding conditions |
| Droplet size | Expected mist droplet size or size range | Influences the required capture structure |
| Removal efficiency | Required mist separation performance | Defines the separation duty |
| Allowable pressure drop | Maximum permitted pressure loss across the pad | Sets a limit for flow resistance |
| Material | Process chemistry, corrosion conditions, and operating temperature | Determines material compatibility |
| Pad thickness | Required depth of mesh through the gas path | Affects contact depth, pressure drop, and drainage |
| Mesh density | Required knitted mesh structure and packing density | Affects available surface area, open space, and flow resistance |
| Wire diameter | Wire size used in the knitted mesh | Affects mechanical strength and open structure |
| Support structure | Support grid, retaining grid, fastening, and sectional arrangement | Keeps the pad correctly positioned during operation |

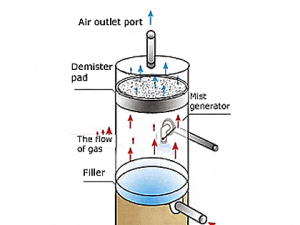

Gas Flow Rate and Gas Velocity
Gas flow rate is one of the primary inputs required when specifying a demister pad because it determines the amount of gas that must pass through the available filtration area.
The specification should include minimum, normal, and maximum operating flow whenever these values are available. Designing around only one operating point may not represent actual process conditions.
Vessel cross-sectional area and gas flow rate together determine the velocity of gas approaching and passing through the demister pad.
Gas velocity is important because it directly affects the interaction between entrained droplets and the knitted mesh structure. If operating conditions change significantly, the relationship between droplet capture, drainage, and gas flow also changes.
For specification purposes, the following information should therefore be confirmed:
- Minimum gas flow rate
- Normal gas flow rate
- Maximum gas flow rate
- Gas density
- Operating pressure
- Operating temperature
- Available vessel cross-sectional area
Droplet Size and Required Removal Efficiency
Droplet size defines the mist separation duty that the demister pad must perform.
A gas stream can contain droplets covering a range of sizes rather than one uniform diameter. The expected droplet size or relevant droplet size range should therefore be included in the process data whenever it is known.
Removal efficiency should also be defined together with droplet size. A general requirement such as “high efficiency” provides less useful engineering information than a specification that identifies the expected mist characteristics and the required separation result.
When preparing a specification, confirm:
- Expected droplet size or droplet size range
- Required removal efficiency
- Gas operating conditions at the demister location
- Whether operating conditions vary substantially during normal service
Liquid Load and Drainage Requirements
A demister pad must not only capture droplets; the collected liquid must also be able to leave the mesh structure.
Liquid load therefore needs to be considered during specification. The amount of entrained liquid reaching the pad affects the quantity of liquid that must coalesce and drain from the mesh.
Insufficient drainage can cause liquid to accumulate within the pad. For this reason, liquid-handling conditions should be evaluated together with gas velocity rather than as a separate parameter.
Important specification data includes:
- Expected liquid load
- Liquid density
- Liquid viscosity where relevant
- Normal drainage direction
- Available drainage space below the pad
- Expected changes in liquid load during operation
Allowable Pressure Drop
The allowable pressure drop establishes how much flow resistance the demister pad can introduce into the process.
Pressure drop is influenced by the interaction between operating gas velocity and the physical structure of the pad. Pad thickness, mesh density, wire diameter, liquid loading, and accumulated deposits can all affect resistance to gas flow.
The specification should therefore define the maximum acceptable pressure loss under the relevant operating conditions.
Pressure drop should not be considered independently from separation performance. A pad structure must provide sufficient droplet interaction while maintaining an acceptable path for gas flow and liquid drainage.
Pad Thickness, Mesh Density, and Wire Diameter
Pad thickness, mesh density, and wire diameter are closely related physical specifications that define the internal structure through which the gas and droplets travel.
Pad Thickness
Pad thickness defines the depth of knitted mesh through which the gas stream must travel.
A greater thickness provides a longer contact path between droplets and the mesh structure. At the same time, increasing the flow path can also affect pressure drop and drainage behavior.
Thickness should therefore be specified together with gas velocity, liquid load, required efficiency, and allowable pressure drop.
Mesh Density
Mesh density affects the amount of wire surface and open space within the pad.
A denser structure provides different droplet-contact and flow characteristics from a more open structure. However, density cannot be selected independently from operating conditions because it also affects gas resistance and liquid drainage.
The appropriate density should be determined as part of the complete pad design rather than treated as an isolated specification.
Wire Diameter
Wire diameter influences both the mechanical structure of the knitted mesh and the open space available for gas and liquid movement.
The selected wire diameter must provide the required structural characteristics while remaining compatible with the intended mesh density and operating conditions.
For this reason, wire diameter, mesh density, and pad thickness should be evaluated together.
Material Specification Parameters
Demister pad material should be specified according to the actual process environment rather than by general material preference.
The required material depends on the chemical composition of the gas and liquid phases, operating temperature, corrosion conditions, and mechanical requirements.
The material specification should include:
- Gas composition
- Liquid composition
- Operating temperature
- Maximum expected temperature
- Operating pressure
- Corrosion conditions
- Chemical compatibility requirements
- Required mechanical strength
Depending on the process conditions, demister pads may be produced from stainless steel, polypropylene, PTFE, titanium, or other suitable materials. The material should be matched to the actual service conditions before the remaining structural parameters are finalized.
Vessel Dimensions and Pad Size
Accurate vessel dimensions are required to define the physical size and sectional arrangement of the demister pad.
The vessel inside diameter alone may not provide enough information. The available installation height, manway dimensions, support location, internal obstructions, and pad removal path can also affect the final construction.
The dimensional specification should normally confirm:
- Vessel inside diameter
- Required pad diameter or plan dimensions
- Available installation height
- Manway or access opening dimensions
- Location of the support grid
- Location of the retaining grid
- Internal obstructions

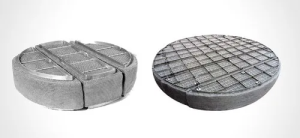

- Whether the pad must be divided into sections
For large vessels or restricted access openings, sectional construction may be required so that individual sections can pass through the available access point and be assembled in position.

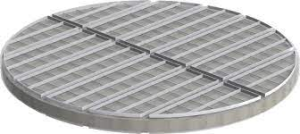

Support Grid and Retaining Structure
The support system is part of the demister pad specification because it controls the physical position and stability of the mesh assembly.
The lower support structure carries the pad and helps maintain its intended shape. A retaining structure may also be required to control movement under operating gas flow.
The specification should identify:
- Support grid arrangement
- Retaining grid requirements
- Fastening method
- Sectional joints
- Required mechanical clearances
- Available installation access
These details should be established before fabrication because they affect pad dimensions, sectional layout, and installation method.
Installation Data Required During Specification
Installation requirements should be defined during the specification stage rather than treated only as an on-site consideration.
The manufacturer needs to know how the pad will enter the vessel, how it will be supported, and whether it must be divided into sections.
Important installation information includes:
- Vessel access opening dimensions
- Maximum section size that can pass through the opening
- Available working space inside the vessel
- Support and retaining locations
- Required orientation
- Section identification or assembly arrangement
- Clearance around the pad perimeter
Providing these dimensions during specification helps ensure that the completed pad matches both the process duty and the physical installation conditions.
Demister Pad Specification Checklist
Before a demister pad is designed or manufactured, the following information should be confirmed wherever applicable.
- Vessel inside diameter or required pad dimensions
- Available installation height
- Minimum, normal, and maximum gas flow rate
- Gas density
- Operating pressure
- Operating temperature
- Liquid load
- Liquid properties
- Expected droplet size
- Required mist removal efficiency
- Allowable pressure drop
- Required pad material
- Corrosion and chemical compatibility conditions
- Pad thickness
- Mesh density
- Wire diameter
- Support grid requirements
- Retaining structure requirements
- Manway or access dimensions
- Sectional construction requirements
FAQs About Demister Pad Specifications
What information is needed to size a demister pad?
The main inputs are vessel dimensions, gas flow rate, gas density, operating pressure, operating temperature, liquid load, droplet size, required removal efficiency, allowable pressure drop, material requirements, and installation dimensions.
Which parameters have the greatest influence on demister pad design?
Gas velocity, droplet size, liquid load, required efficiency, allowable pressure drop, and vessel dimensions are among the main process parameters. These must be considered together with pad thickness, mesh density, wire diameter, and material.
How is demister pad thickness specified?
Pad thickness should be determined according to the required separation duty, gas velocity, liquid load, pressure-drop limit, and mesh structure. It should not be selected as an independent dimension.
What affects pressure drop across a demister pad?
Pressure drop is influenced by gas velocity, pad thickness, mesh density, wire diameter, liquid loading, and the condition of the mesh. These factors determine how much resistance the gas encounters while passing through the pad.
How should demister pad material be specified?
The material should be matched to process temperature, gas and liquid composition, corrosion conditions, chemical compatibility, and mechanical requirements. Material selection should therefore be based on actual service conditions.
Why are manway dimensions required when specifying a demister pad?
Manway dimensions determine the maximum size of each pad section that can enter the vessel. When the completed pad is larger than the available opening, sectional construction may be required.
Conclusion
A complete demister pad specification combines process conditions, separation requirements, physical pad parameters, material requirements, and vessel installation data.
The most important inputs include gas flow rate, gas velocity, liquid load, droplet size, target removal efficiency, allowable pressure drop, operating temperature, vessel dimensions, pad thickness, mesh density, wire diameter, material, and support structure.
These parameters should be evaluated as a connected system. Changes to gas velocity, pad density, thickness, or liquid loading can affect several other design conditions at the same time. Defining the operating data clearly before fabrication provides a more reliable basis for determining the required demister pad structure and dimensions.
