Comprehensive Overview: Understanding Sintered Metal Filters

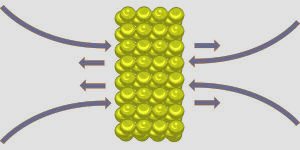

What is Sintered Filter Working Principle?

In a nutshell, the robust and permeable architecture of sintered metal filters elevates them as superior for filtration in contemporary times. These metal constructs boast impressive resilience to elevated temperatures, immense pressure, and corrosive environments, facilitating filtration in more demanding settings. They adeptly segregate and purge unwanted contaminants or assist in procuring gases or liquids of heightened purity for your ventures. Click here, and you will find the Top Sintered Metal Filter Manufacturers.

It’s plausible that the term ‘sintered metal’ doesn’t frequently punctuate your everyday conversations.

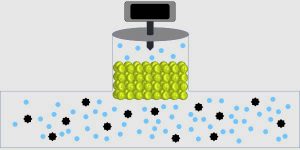

 Filtration and Separation Dispersion

                    Filtration and Separation                                                                  Dispersion

                   Throttling and Dampening                                                                 Equalizing

Yet, in an array of industrial realms, the utilization of sintered metal is escalating. This material is gradually emerging as a pivotal element in certain manufacturing spheres.

What Exactly is a Sintered Metal?

This domain pertains to a specialized segment of the powder metallurgy sphere. Encapsulation involves transmuting 316L stainless steel powder into requisite shapes and functionalities through a mold, followed by an elevated temperature sintering process.

Delving into the initial phase, sintering, one might inquire about its essence. Sintering embodies the technique of compressing and sculpting a solid mass from a material using thermal energy or pressure yet eschewing the liquefaction phase. As delineated by Wikipedia, this method is integral to the fabrication processes employed across various substances, including metals, ceramics, plastics, and more.

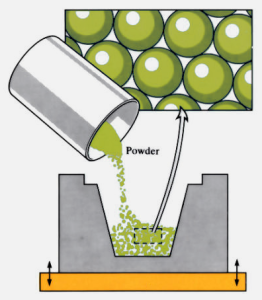

Loose powder is filled into metal dies that are magnetically vibrated.   The powder and die are loosely sintered at a sintering temperature in the furnace.

As expounded by Wikipedia, many materials are amenable to sintering, each yielding sintered products with distinct utilitarian aspects. Our discourse now shifts to a more detailed exploration of sintered metals.

The History of Sintering Metal

The history and development of sintering and the use of sintered products, particularly in filtration technology, is a fascinating journey that intersects with various industrial advancements.

Sintering Process and Its Industrial Use:

Sintering, a method of creating solid materials from powders by applying heat or pressure, has ancient origins in pottery and brick-making. However, its industrial application, especially in metallurgy, expanded significantly during the 19th and 20th centuries.

Development of Sintered Metal Filters:

The use of sintered metal specifically for filtration gained prominence in the latter half of the 20th century. A key milestone was the introduction of HyPulse® filtration technology in 1985, showcasing sintered metal filters‘ effectiveness in industrial applications, such as filtering slurry oil in carbon fiber production.

Adoption in the Refinery Industry:

In China, from the late 1990s, refineries started adopting sintered metal filters to remove catalyst fines in slurry oil solutions. These filters proved essential in resid fluid catalytic cracking (RFCC) systems, efficiently handling high-capacity and demanding filtration tasks.

Modern Applications:

Today, sintered metal filters are widely used across various industries for filtering gases and liquids. Their durability and precision make them valuable in pharmaceuticals, chemical processing, and food and beverage production.

While sintering is ancient, its application in modern industrial filtration, mainly using sintered metal, is a recent development that has become crucial in many industrial processes since the late 20th century.

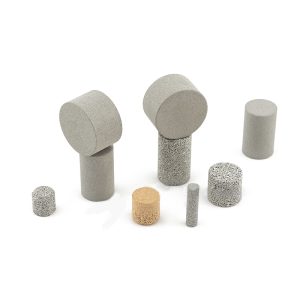

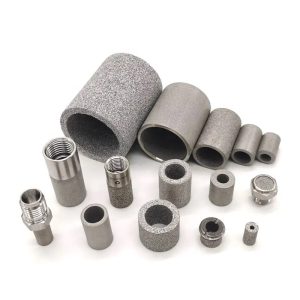

What is Sintered Metal Filter?

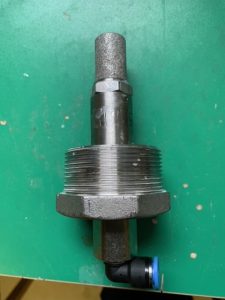

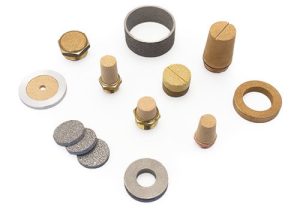

                             Breather-Vents                                                              Sensor-Protection

A sintered metal filter is crafted through a meticulous process where homogeneously sized metal powder granules are sculpted using a stamping technique, followed by a high-temperature sintering procedure. This specialized form of metallurgy sintering employs powdery aggregates of various metals and alloys shaped post-stamping.

This metallurgical transformation unfolds through diffusion in high-temperature kilns, remaining below the melting threshold of the metals involved. The spectrum of metals and alloys typically harnessed in contemporary applications spans from aluminum and copper to nickel, bronze, stainless steel, and titanium.

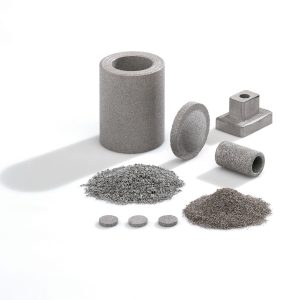

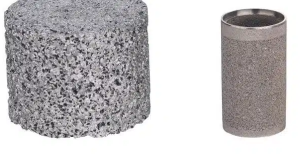

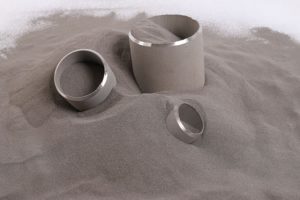

    Porous metal powder material molding                                Die extrusion molding

Several techniques are employed to shape the metal powder into the desired form, including pulverization, atomization, and chemical disintegration.

What the Sintering Metal Filter Manufacturing Process

 Your explanation of sintering and the steps in manufacturing sintered metal filters is comprehensive. Let’s break it down for clarity:

What is Sintering?

Sintering is a process in which metal powder is bonded under high temperatures, along with other methods, to form a solid structure. This process is beneficial because it allows for precise control over the pore size and distribution within the material. This control is crucial for applications like filtration, where the size and uniformity of pores determine the filter’s effectiveness.

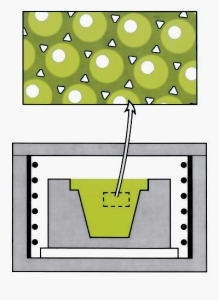

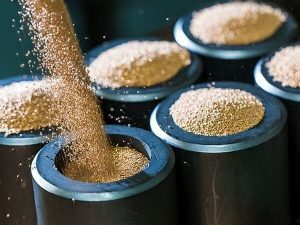

     High-temperature sintered metal powder materials



Why Use Sintering?

Control Over Pore Size and Distribution: As you mentioned, sintering allows for the control of pore distance, which is essential for creating effective filters.

Maintains Metal Properties: Sintering does not significantly alter the physical properties of the metal, maintaining its inherent strength and durability.

Versatility in Material Selection: Different metals or alloys can be used, providing flexibility in the properties of the final product.

Robust Filtration Performance: Sintered metal filters are known for their strength and durability, making them suitable for various demanding applications.

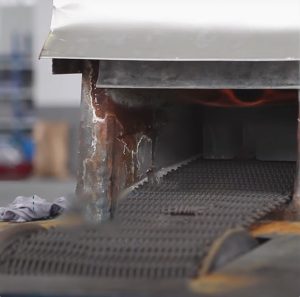

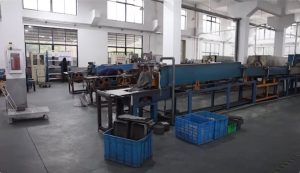

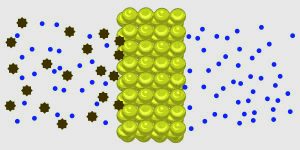

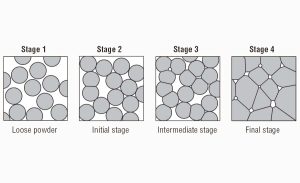

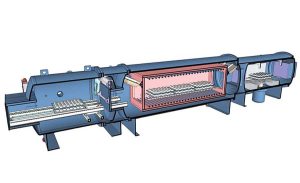

               Continuous vacuum furnace                                  Three stages of solid-state sintering

3 Main Steps of Sintered Metal Filter Manufacturing

Obtaining Metal Powder

  • Methods: Metal powders are obtained through grinding, atomization, or chemical decomposition.
  • Material Selection: A single metal or a combination of metals can form alloys.
  • Advantage: The process preserves the metal’s physical properties.

Stamping

  • Forming the Filter: Metal powder is poured into a mold and shaped at room temperature under high pressure.
  • Pressure Application: The pressure varies depending on the metal’s elasticity.
  • Compaction: High-pressure impact compacts the powder in the mold, forming a solid filter structure.

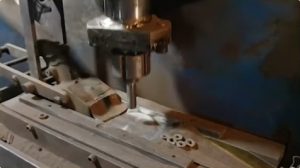

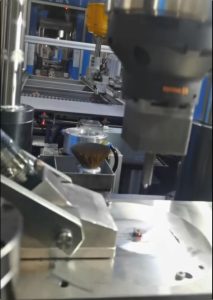

                   Metal Powder High-Pressure Molding

High-Temperature Sintering

  • Fusion of Particles: Metal particles are fused at high temperatures without reaching their melting point.
  • Strength and Porosity: The result is a strong, rigid, and porous filter.
  • Control of Porosity: Adjusting the process allows control over the filter’s porosity, affecting the flow level of air or liquid that can be filtered.
  • Sintered Media Grades: These are designated by mean flow pore or average pore size, with grades ranging from 0.1 to 100.
  • Filtration Rating: In liquids, the filtration rating for media grades 0.2 to 20 is between 1.4 and 35 µm absolute, and in gases, it ranges from 0.1 to 100 µm absolute.

This detailed breakdown should help us understand the sintering process and its application in manufacturing sintered metal filters.

Why Use Metal Sintering to Make Filter?

Are you pondering the rationale behind employing metal for crafting filters? The elucidation lies in a multifaceted tapestry of reasons, with fiscal considerations reigning supreme.

Why Fiscal Considerations?

Indeed, sintered metal boasts a robust architecture, offering the boon of multiple reutilizations post-cleansing.

Moreover, diverse metallic elements possess steadfast physical and chemical attributes, rendering them resilient to deterioration.

Hence, the escalating adoption of Sintered Filters across various industrial sectors is observable.

What are the Material Choices for Sintered Filters?

 Amidst the relentless advancement of powder metallurgy techniques, a burgeoning array of material selections for sintered metal filters has emerged. These choices extend beyond traditional options, accommodating specific demands for elevated thermal and pressure thresholds and enhanced corrosion resilience. Predominant metallic substances include:

  • Stainless Steel Filters, encompassing grades like 316L, 304L, 310, 347, and 430
  • Bronze
  • Inconel® variants 600, 625, and 690
  • Nickel200 and Monel® 400, a blend of 70% Nickel and 30% Copper
  • Titanium
  • A spectrum of Alloys

The horizon promises an expanding utilization of diverse metals in forthcoming applications.

8-Main Advantages of Sintered Metal Filter

1. Inherent Anti-Corrosive Traits

Most metals have natural resilience against corrosive forces, including sulfides, hydrides, and oxidative processes.

2. Enhanced Purification Efficacy

Tailoring the porosity of the cartridge to the fluid’s characteristics enables optimal filtration, ensuring the liquid remains untainted. Moreover, the non-corrosive nature of the filter precludes the introduction of impurities into the fluid through reactive processes.

3. Robust Thermal Shock Absorption

The production phase generates intense heat, yet these metals possess physical attributes that robustly absorb significant thermal shocks. This quality allows for their use across diverse thermal conditions, ensuring efficient fluid filtration irrespective of the application’s heat levels.

4. Optimal Pressure Equilibrium

Sintered metal filters are adept at sustaining fluid pressure within your system, guaranteeing peak operational efficiency. Conversely, even a minor pressure fluctuation could be detrimental to your system.

5. Resilience to Extreme Temperatures and Pressures

These filters are exceptionally capable in environments subject to high temperatures and pressures, maintaining their integrity and functionality. Their use in chemical reaction processes and gas treatment facilities exemplifies their superior filtration capabilities under demanding conditions.

6. Durability and Fracture Resistance

The strength and fracture resistance of sintered metal filters are noteworthy. The metallurgical bonding during manufacturing occurs significantly below melting points, resulting in a robust product capable of enduring harsh conditions. For instance, they are ideal for friction applications, with no risk of breakage.

7. Precision Tolerances

The precise tolerances of these filters mean they can perform filtration tasks without chemical interaction. Post-filtration, the sintered metal filter retains its physical characteristics, though it’s crucial to select a metal that remains inert in the presence of the specific fluid being filtered.

8. Versatile Geometric Adaptability

Sintered cartridges offer a plethora of geometric configurations. This flexibility is achieved during manufacturing, where the powder is molded into the desired shape. The mold dictates the filter’s design, allowing customization to meet specific requirements. Whether the need is for a miniature filter or one with a unique design, the mold can be adjusted accordingly during production.

How Sintered Metal Filters Work?

The enigma often associated with the operational ethos of sintered metal filters is, in reality, more labyrinthine than presumed. This revelation might either startle you or seem predictable after my elucidation.

Sintered metal filters, in their essence, are quintessential in the realm of filtration. The ensnarement of impurities transpires at the fluid’s interface; as the liquid meanders through the metallic sieve, the more substantial particulates and contaminants are sequestered on one flank of the cartridge. However, in electing an apt filtration magnitude for your liquid, it’s imperative to ascertain its competency in sieving out the necessitated elements.

Essential Criteria for Effective Filtration



  1. Capability for Contaminant Retention and Reversal Flushing
  2. Considerations for Hydraulic Resistance

A comprehensive evaluation of several key factors is essential in addressing hydraulic resistance. These include:

  • Fluid Dynamics: This involves assessing the fluid’s viscosity and velocity as it moves through the filter medium, along with the unique characteristics of the contaminants.
  • Contaminant Properties: These are defined by the particles’ shape, weight, and size. In scenarios where the contaminant is complex and uniformly shaped, resulting in a dense layer, surface filtration emerges as the optimal approach.

  Capability for Contaminant Retention            Sintered FiltersReversal Flushing

Determinants of Sintered Metal Filtration Efficiency:

  1. Pressure Dynamics: The efficiency is partly determined by the increase in hydraulic resistance until the point of absolute pressure is achieved.
  2. Fluid Consistency: The continuous flow of the fluid plays a crucial role.

To reach the desired end conditions, it’s necessary to concentrate on the accumulation of contaminants to a point where there’s a notable reduction in fluid pressure. This decrease continues until the maximum allowable drop, given the fluid’s viscosity and flow rate requirements.

Another critical aspect is the reverse cleaning of the filter. This process involves pressurizing the gas toward the screen and swiftly activating the backwash discharge. This action creates a significant reverse pressure difference, effectively dislodging contaminants from the filter surface. The reverse flow of clean fluid through the filter element removes these contaminants, expelling them from the filter system.

A steady increase in hydraulic resistance rate indicates a consistent and uniform distribution of contaminant sizes. For optimal performance, it’s vital to maintain a stable hydraulic resistance in the filter element. Fluctuations in the fluid’s temperature can affect its viscosity, thereby impacting the hydraulic resistance across the filter element and compromising the filtration effectiveness.

Therefore, maintaining the operational temperature of the filter during the filtration process is crucial. This includes monitoring the temperature of the fluid and keeping the pressure. Adhering to the correct reverse flushing procedure when cleaning the filter ensures its longevity and effectiveness.

What Are Sintered Filters Used For?

In sintered metal filters, myriad inquiries burgeon, chiefly their practical applications. Post the intricate fabrication process. One ponders the destinations of these sintered metal filter cartridges.

Indeed, their presence is ubiquitous across diverse sectors.

Enumerating their prevalent uses:

  • Chemical Synthesis: Sintered metal filters are paramount in realms where chemical solvents and gases intertwine, including the nuclear sphere. Their resilience against corrosion, aptitude for high-temperature environments, and inertness in chemical reactions render them invaluable in chemical synthesis.
  • Petroleum Refinement: Tailoring metal filters to the specific gravity of various fuels is crucial in petroleum refinement. Sintered metal filters excel here; being chemically inert, they ensure the purity of energies post-filtration. Moreover, their endurance at temperatures as high as 700° is a boon in this industry.
  • Electrical Power Generation: The unceasing operation of turbines in hydroelectric power plants necessitates a pristine aquatic environment. Sintered metal filters play a pivotal role in purging impurities and safeguarding the turbine’s functionality, thus ensuring uninterrupted electricity generation.
  • Natural Gas Harvesting: Sintered metal filters are indispensable in extracting natural gas. Their chemical inertness and versatility across varied environments make them ideal for this application.
  • Nutriment and Libation Processing: In the food and beverage industry, metal filters extract vital nutrients and essences. They proficiently sieve these elements, preventing their loss during processing. Their non-reactive nature with specific edibles and drinks upholds the integrity of the production process.

In essence, the applications of sintered metal filters are as varied as they are vital, permeating numerous industries with their unique properties.

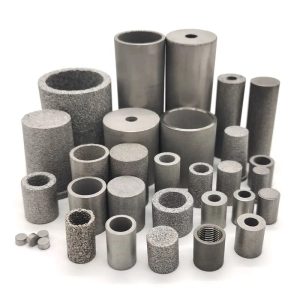

 What kind of Sintered Metal Filters Can Saifilter Supply?

Saifilter can supply a range of sintered metal filters, including:

Still, do you have any questions or want more details about OEM Sintered Metal Filters?

Please feel Free To Contact Us Now.

Also, You Can Send Us an Email Directly As Follow: [email protected]

We will send it back within 24 hours. Thanks for your patience!
