A sparger is a device used to introduce gases, such as oxygen or carbon dioxide, into liquids. It creates fine bubbles that evenly distribute the gas throughout the liquid, aiding in mixing, oxygenation, or chemical reactions.
This article will walk you through everything you need to know about spargers, including their definition, working principles, and types. We’ll guide you through how to choose the right sparger based on your process needs, covering key factors like design, material, gas type, and application. Whether you’re dealing with fermentation, wastewater treatment, or chemical reactions, this article will help you make an informed decision to improve efficiency and optimize your processes.
What is a Sparger?
A sparger is a device used to introduce gases, such as oxygen or carbon dioxide, into liquids by generating fine bubbles that are evenly dispersed throughout the liquid. This enhances mixing, oxygenation, and chemical reactions. Commonly used in industries like fermentation, wastewater treatment, and chemical processing, spargers play a critical role in optimizing processes by ensuring precise gas-liquid interaction, which boosts efficiency and process performance.
Further Reading: Sparger Definition
How Does a Sparger Function and Why is it Crucial?
A sparger works by forcing gas through a porous material, typically metal or ceramic, which breaks the gas into fine bubbles that evenly spread throughout the liquid. This simple mechanism increases the surface area for gas-liquid contact, improving processes such as oxygenation, mixing, and chemical reactions.
Increasing Gas Transfer Efficiency
Spargers are especially useful for improving gas transfer efficiency. The fine bubbles they produce dramatically increase the surface area, enabling more gas to dissolve into the liquid. For example, in fermentation, this ensures that the microbes get the oxygen they need to grow efficiently, speeding up the process. In wastewater treatment, it helps dissolve oxygen, which is crucial for breaking down organic materials.
Enabling Precise Control
Spargers provide excellent control over the rate and volume of gas entering the liquid, which is vital for many industrial processes. In fermentation, for instance, too much oxygen could hinder the growth of certain microbes. Spargers help manage this delicate balance by providing a consistent and controlled gas flow. This control also benefits chemical processes, where maintaining optimal conditions is crucial for reaction success.
Supporting Large-Scale Operations
Spargers shine in large-scale applications, where consistent and even distribution of gas is key. In industrial fermentation tanks or wastewater treatment facilities, spargers ensure that large volumes of liquid receive uniform gas distribution, which improves consistency and efficiency. This is particularly critical in sectors like pharmaceuticals or food production, where uniformity and process control are paramount.
Different Types of Spargers and Their Uses
Spargers are designed differently depending on the application, gas type, and process requirements. Below, we’ll explore the most common sparger types based on application, design, material, and shape, highlighting their advantages, limitations, and ideal uses.
Spargers for Fermentation

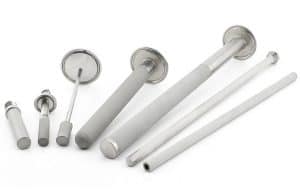

In fermentation processes, spargers are essential for supplying oxygen to microorganisms that require it for growth. Porous spargers are often the go-to choice for fermentation due to their ability to produce fine, evenly distributed bubbles that maximize oxygen transfer efficiency. This type of sparger ensures that oxygen is delivered to the liquid in a controlled manner, preventing excess oxygen that might harm microbial activity.
Spargers for Wastewater Treatment
Wastewater treatment requires spargers that can inject oxygen into the water to facilitate the growth of aerobic bacteria. Jet spargers and pipe spargers are commonly used in these systems because of their ability to efficiently deliver oxygen over large volumes of water. These spargers help break down organic matter in the wastewater, improving treatment efficiency and supporting environmental sustainability.
Spargers for Chemical Reactions

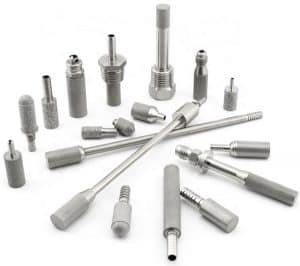

Chemical reactors often require precise control of gas flow to enhance reactions. Frit spargers and bubble cap spargers are ideal for these applications. Frit spargers produce fine bubbles, which are particularly useful for reactions that demand high gas-liquid interaction, like carbonation or gas absorption. On the other hand, bubble cap spargers are better for high-flow reactions, where larger bubbles are more effective at gas dispersion.
Spargers Based on Design
The design of a sparger affects how it interacts with the liquid, influencing mixing, gas transfer, and overall process efficiency. The following are common sparger designs:
- Porous Spargers: These spargers have a porous structure that creates fine, uniform bubbles. They are perfect for applications requiring consistent gas distribution, like fermentation and wastewater treatment.
- Bubble Cap Spargers: These spargers use a series of perforated caps to generate larger bubbles. They’re best suited for high-flow applications, such as distillation columns or gas-stripping operations.
- Jet Spargers: Jet spargers use high-velocity gas jets to inject gas into the liquid. These are ideal for aggressive mixing and high-efficiency oxygenation.
Spargers Based on Materials
The material of a sparger plays a key role in its durability and suitability for certain industries. The most common materials include:
- Sintered Metal Spargers: Often made from stainless steel, these spargers are durable and resistant to corrosion, making them suitable for harsh environments in wastewater treatment and chemical reactions.
- Ceramic Spargers: Ceramic spargers are preferred for their excellent chemical resistance, making them a top choice in pharmaceutical and food production industries where sterilization and cleanliness are important.
- PTFE Spargers: PTFE spargers are highly resistant to chemicals, making them ideal for use in aggressive industrial processes like semiconductor manufacturing.
Spargers Based on Shape
The shape of a sparger affects its surface area, gas transfer efficiency, and mixing capability. Common shapes include:
- L-Shape Spargers: These spargers have a larger surface area, making them effective for enhancing gas-liquid contact. They’re often used in large-scale fermentation or applications requiring intense mixing.
- Pipe Spargers: Pipe spargers are simple to install and maintain, making them an excellent choice for large tanks or vessels. However, they are less effective for high-efficiency mixing compared to L-shape spargers.
- Vortex Spargers: These spargers create a swirling motion in the liquid, enhancing the gas transfer rate. They’re commonly used in wastewater treatment to increase gas absorption and improve mixing.
Sparger Comparison Table
To make it easier for you to choose the right sparger for your application, here’s a quick comparison of different sparger types:
| Sparger Type | Best For | Key Advantages | Limitations | Recommended Application |
| Porous Sparger | Oxygenation, fermentation, chemical reactions | Fine bubbles, uniform gas distribution | Can clog if not cleaned regularly | Fermentation, wastewater treatment |
| Bubble Cap Sparger | High gas flow applications, distillation | High-flow gas distribution, simple design | Larger bubbles, less fine gas dispersion | Distillation, stripping columns |
| Jet Sparger | Aggressive mixing, high-efficiency oxygenation | High-efficiency gas transfer, precise control | Can create turbulence in the liquid | Wastewater treatment, chemical reactions |
| Frit Sparger | Laboratory use, precise gas dispersion | Uniform bubbles, high control over gas flow | Fragile, requires regular cleaning | Small-scale fermentation, lab experiments |
| Pipe Sparger | Large vessels, precise gas introduction | Simple design, easy to maintain | Less effective for mixing, not ideal for large-scale aeration | Large tanks, industrial-scale operations |
| Vortex Sparger | Gas absorption, enhancing mixing | Promotes uniform mixing, efficient gas transfer | Requires careful placement to avoid excess turbulence | Wastewater treatment, gas absorption |
| L-Shape Sparger | Intense mixing, large surface area | Maximizes gas-liquid contact, efficient mixing | Complex design, higher initial cost | Large-scale fermentation, mixing-intensive applications |
How to Choose the Right Sparger for Your Process
Selecting the right sparger is crucial for optimizing your process and ensuring maximum efficiency. Here’s a guide to help you choose the best sparger for your needs, based on your process goals, gas type, and liquid characteristics.
Understand Your Process Needs
Start by identifying your process goals. Are you focusing on oxygenation, mixing, or chemical reactions? Your sparger choice will depend on these needs.
For fermentation, porous spargers are ideal, as they provide efficient oxygen transfer with fine bubbles. In wastewater treatment, jet spargers and pipe spargers inject oxygen effectively for large volumes. For chemical reactions, frit spargers offer fine bubble dispersion, while bubble cap spargers are suited for high-flow processes.
Temperature, Pressure, and Flow Rate
Consider how temperature, pressure, and flow rate affect the sparger’s performance.
- Temperature: High temperatures can reduce gas solubility, so spargers made from materials like stainless steel or ceramic are ideal for heat resistance.
- Pressure: For processes requiring high-pressure gas injection, sintered metal spargers are recommended due to their durability under pressure.
- Flow rate: If your process requires high flow rates, spargers that can handle large volumes, such as pipe spargers or L-shape spargers, are more efficient. They ensure even gas distribution across larger surface areas.
Choose Based on the Gas Type
Different gases require different sparger types. Consider the gas you’re using, as it affects how the sparger will perform.
- Oxygen: Common in fermentation and wastewater treatment, oxygen needs fine and even dispersion. Porous spargers or frit spargers are ideal.
- Carbon Dioxide (CO2): For carbonation or pH control, CO2 requires spargers that can handle larger bubbles. Bubble cap spargers or pipe spargers are a good fit.
- Other Gases: Gases like nitrogen or ammonia need spargers with precise control. Jet spargers or L-shape spargers are the best choice for these gases.
Consider the Liquid’s Characteristics
The type of liquid you’re working with affects sparger choice. Consider its viscosity, particle content, and volume.
- Viscosity: Thicker liquids require spargers with larger surface areas or higher flow rates to ensure effective gas transfer. L-shape spargers and pipe spargers are great for these situations.
- Particulate Content: If your liquid has particles, choose spargers that won’t clog. Jet spargers and pipe spargers handle higher flow rates without obstruction.
- Volume: For large volumes, spargers that cover a wide surface area are needed. Pipe spargers work well for large tanks or industrial applications.
Determine Gas Distribution Requirements
How fine do you need the bubbles? The sparger design plays a big role in this.
- Fine Bubbles: If your process requires fine bubbles for efficient gas transfer, porous spargers and frit spargers are your best bet.
- Larger Bubbles: For high-flow processes, such as distillation or gas stripping, bubble cap spargers create the larger bubbles needed for effective gas dispersion.
Select the Right Material
The material of your sparger is crucial for its durability and ability to withstand harsh conditions.
Sintered metal spargers, typically made from stainless steel, offer great resistance to corrosion and are ideal for demanding environments like wastewater treatment and chemical processes. Ceramic spargers are highly resistant to chemicals, making them perfect for industries requiring strict hygiene standards, such as pharmaceuticals and food production. PTFE spargers excel in aggressive chemical environments, offering resistance to many chemicals and high temperatures.
Think About Maintenance and Longevity
Lastly, consider how much maintenance the sparger will need and how long it will last in your process.
- Cleaning Needs: Some spargers, like frit spargers, require regular cleaning due to clogging risks, while pipe spargers are easier to maintain.
- Durability: Sintered metal spargers and ceramic spargers tend to last longer, especially in demanding conditions, so they are a good investment for long-term use.
Sparger Cleaning and Maintenance
Proper maintenance and regular cleaning are key to keeping your sparger working efficiently. Over time, spargers can clog or wear down due to the conditions they are exposed to. Here’s how to ensure your sparger performs at its best.
First, clean your sparger regularly to prevent blockages from debris, chemical buildup, or microbial growth. Soaking the sparger in a mild cleaning solution can help break down these materials. After soaking, rinse thoroughly with clean water to remove any residue. Be sure to follow the manufacturer’s cleaning recommendations to avoid damaging the sparger.
Inspect your sparger periodically for signs of wear or damage. Look for cracks, corrosion, or clogged pores. If you spot any issues, clean the sparger or replace it if necessary. If the sparger is made from ceramic or frit, it’s especially important to check for blockages as they are prone to clogging over time.
For spargers used in harsh environments, consider installing pre-filters or strainers to reduce clogging and extend the sparger’s lifespan.
What is sparge in brewing?
In brewing, sparging is the process of rinsing grains in hot water to extract remaining sugars and flavors. This step is crucial for producing wort, the base liquid for beer. A sparger is used to evenly distribute hot water over the grain bed for effective sugar extraction.
What is a sparger nozzle used for?
A sparger nozzle directs the gas flow into the liquid. It ensures even gas distribution, which is crucial for processes like oxygenation or chemical reactions. The nozzle helps control the gas flow for precise mixing and efficiency.
What is sparging in distilling?
In distilling, sparging involves injecting gases like steam or air into the distillation column. This process aids in separating components and improving the efficiency of distillation by enhancing gas-liquid contact.
What are the three types of spargers?
Spargers can be classified into several types based on their design, material, and application. The three most common types are:
- Porous spargers: Best for creating fine bubbles for applications like fermentation.
- Jet spargers: Used for high-efficiency mixing and oxygenation, typically in wastewater treatment.
- Bubble cap spargers: Ideal for high-flow applications where larger bubbles are needed for gas distribution.
Conclusion: Optimize Your Process with Saifilter’s High-Performance Spargers
In summary, spargers play a crucial role across various industries, from fermentation to wastewater treatment and chemical reactions. Choosing the right sparger for your process can significantly improve efficiency, optimize gas transfer, and enhance overall performance. Whether you’re looking to oxygenate liquid for microbial growth in bioreactors or efficiently treat large volumes of wastewater, the right sparger makes all the difference.
At Saifilter, we specialize in providing high-quality porous spargers designed for demanding applications. Our sintered metal spargers, including diffusion stones, sparger pipes, and ring spargers, offer reliable, consistent performance. We use durable materials such as stainless steel and ceramic, ensuring that our spargers deliver superior gas transfer efficiency and long-lasting operation.
What sets Saifilter apart is our ability to customize spargers to your specific process needs. From material selection to size and connection type, we provide tailored solutions that fit your exact requirements. Our products are designed to maximize efficiency, reduce energy consumption, and ensure trouble-free operation over time.
Need a sparger solution for your next project? Reach out to Saifilter today for expert advice and high-performance sparger products that can optimize your processes. Contact us now to discuss your needs and get started!
