If you’ve ever dealt with foggy gas streams, corrosion in downstream equipment, or unexpected liquid carryover in your system, you’ve likely encountered a problem that demister pads are designed to solve. These simple yet powerful components remove fine liquid droplets from gas—keeping your operations cleaner, more efficient, and compliant.
But how exactly do they work? And how do you choose the right type for your process?
In this article, we’ll walk you through everything you need to know about demister pads. We’ll start with how they work, then explore the different types and materials available. You’ll also learn what design features to look for, how they’re used in real-world industries, and what matters when it comes to installation and maintenance. We’ll also compare vane pack vs. wire mesh demisters and offer practical tips for choosing the best solution for your setup.
Whether you’re designing a new system or upgrading an existing one, this guide is here to help you get it right.
What are Demister Pads?
Demister pads, also known as mist eliminators or vapor pads, are crucial in industrial processes for ensuring the purity and efficiency of gas streams. These devices adeptly remove tiny liquid droplets and dust particles from gases, thus maintaining operational integrity and meeting the environmental standards of various systems. Their functionality is centered on the coalescence of droplets within the gas flow, captured by the mesh structure of the pads.
Different types are tailored for specific conditions, whether for general use or challenging environments like high temperatures or corrosive substances. Widely used in industries like chemical manufacturing, oil and gas, and power generation, demister pads enhance performance, reduce maintenance costs, and contribute to sustainability. In essence, they are key to the effective and environmentally compliant operation of industrial gas purification systems.
Working Principle of Demister Pads
The core functionality of demister pads lies in the coalescence process. This process involves the transformation of small, entrained liquid droplets in a gas stream into larger ones, which can then be easily separated.

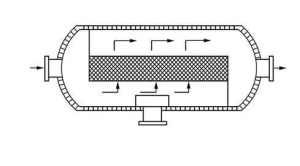

The demister pad achieves this by presenting a mesh-like barrier in the path of the rising gas. As the gas, laden with fine droplets, passes through this mesh, the droplets collide with the wire filaments of the mesh. These collisions lead to the droplets adhering to the filaments, subsequently coalescing with other droplets to form larger ones.
Over time, these larger droplets become too heavy to be carried by the gas and fall away due to gravity, effectively being separated from the gas stream. This selective barrier allows the gas to continue its flow with minimal resistance, ensuring that the process’s efficiency is not compromised.
What are the types and materials of mist eliminators?
Demister pads, crucial in various industrial processes, are available in four distinct types to meet specific operational needs.
- The standard type, widely used for general applications, offers reliable performance in routine environments.
- For systems demanding superior filtration efficiency, the efficient type is the go-to option, engineered to capture finer particles with greater effectiveness.
- In more demanding scenarios, such as heavy-duty industrial applications where larger volumes and denser particles are encountered, the high penetration type excels, providing robust performance under challenging conditions.
- Finally, the shock absorber type is uniquely designed for environments with fluctuating pressure conditions. This type ensures stability and consistent performance, even in systems experiencing significant pressure variations, making it an ideal choice for processes that involve dynamic pressure changes.
Each type’s specialized design ensures optimal functionality and efficiency, tailored to the specific demands of various industrial applications.
The materials for constructing demister pads are chosen based on the chemical compatibility and physical demands of the application. Common metallic materials include stainless steel, used for its resistance to corrosion and versatility; carbon steel, known for its strength and durability; copper, titanium alloy, and nickel alloys, each selected for specific chemical environments.

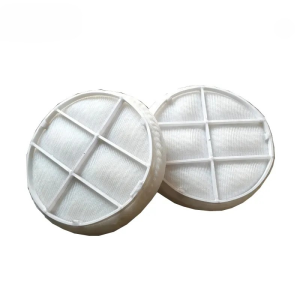

In corrosive conditions at moderate temperatures, plastic materials like polypropylene (PP), polyethylene (PE), polyvinyl chloride (PVC), fluorinated ethylene propylene (FEP), polytetrafluoroethylene (PTFE), and polyvinylidene fluoride (PVDF) are preferred for their chemical inertness and durability.
Vane Pack vs. Wire Mesh Demister Pad – What’s the Difference?
Demister pads are generally available in two main structural types: wire mesh and vane pack. While both are designed to remove liquid droplets from gas streams, they differ in construction, performance, and application suitability.
Wire Mesh Demisters
These are made of finely knitted metallic or plastic wire, forming a dense mesh pad. As the gas flows through the mesh, fine mist droplets collide with the wire surface, coalesce, and eventually fall out by gravity. Wire mesh pads are known for their high separation efficiency, especially for droplets smaller than 10 microns. They are lightweight, easy to install, and cost-effective for general-purpose applications with moderate flow rates.
However, wire mesh demisters may become less effective at very high gas velocities or in liquid-heavy systems, where re-entrainment can occur. In such cases, vane-type pads may be preferred.
Vane Pack Demisters
These consist of a series of parallel metal or plastic plates (vanes) with directional changes that force the gas stream to alter course. As gas changes direction, droplets are thrown toward the vane surfaces and collected. Vane pack demisters are better suited for high gas velocity, larger droplet sizes, and heavy liquid loading. They offer lower pressure drop and are easier to clean in fouling environments.
Key Differences at a Glance:
| Feature | Wire Mesh Demister | Vane Pack Demister |
| Droplet Size | Effective < 10 microns | Effective > 20–30 microns |
| Gas Velocity Range | Low to moderate | Moderate to high |
| Pressure Drop | Slightly higher | Lower |
| Efficiency | Very high (for fine mist) | Moderate |
| Fouling Resistance | Moderate | Better (easier to clean) |
| Applications | General-purpose, columns | Scrubbers, absorbers, high-flow systems |
Which One Should You Choose?
- Choose wire mesh if your process deals with fine mist, moderate flow rates, and requires high efficiency in a compact design.
- Choose vane packs for higher capacity systems, dirty services, or where pressure drop must be minimized.
In many systems, the choice depends not only on performance but also on available space, maintenance frequency, and cost. Some complex systems may even combine both types to maximize efficiency under different operating loads.
Design and Features of Demister Pads
The design and features of demister pads are critical to their performance. Key characteristics include high porosity, which reduces pressure drops, and a simple yet effective structure. They are lightweight, easy to transport, and offer a large surface area for high separating efficiency. Additionally, their construction materials grant them excellent corrosion and rust resistance, contributing to durable and long service life. Furthermore, these pads are designed for ease of installation, operation, and maintenance.

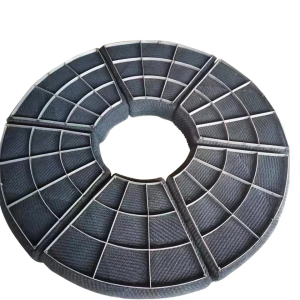

Demister pads are available in various shapes, including round, ring, rectangular, and customized forms, to fit different system configurations. The design parameters such as liquid loading, gas and liquid viscosity, gas pressure, and surface tension are carefully considered to optimize performance in specific applications.
Demister Pad Sizing and Selection Guide
Choosing the right size and specifications for a demister pad is essential to ensure proper separation efficiency and minimal pressure drop. Sizing depends on several process parameters, including gas flow rate, vapor density, liquid loading, and acceptable pressure loss.
Vapor Velocity (Allowable)
The key to sizing is to maintain gas velocity below a critical limit where liquid droplets may be re-entrained. This is often referred to as the “flooding velocity.”
The allowable velocity (V) is commonly calculated using the Souders–Brown equation:
V = K × sqrt[(ρL – ρV) / ρV]
- V = allowable vapor velocity (m/s or ft/s)
- K = empirical constant (typically 0.10–0.35 ft/s for wire mesh)
- ρL, ρV = densities of liquid and vapor phase
Pad Thickness and Free Volume
Standard pad thickness ranges from 100 mm to 200 mm. Thicker pads may improve efficiency but cause higher pressure drop.
The free volume (or porosity) of the mesh affects both capture efficiency and pressure loss. A typical wire mesh demister has porosity > 98%.
Wire Density / Mesh Type
Common mesh densities are between 80 to 240 kg/m³. Lower density is preferred for low vapor velocity and lower pressure drop, while higher density provides better efficiency for fine mist removal.
Pad Area and Diameter
For column-mounted demisters, pad diameter usually matches the column ID. The area is calculated based on the total gas volumetric flow and selected vapor velocity. Always allow margin to prevent flooding under transient conditions.
Operating Conditions
- High temperature → use stainless steel or nickel alloys
- Corrosive service → use PTFE, PP, PVDF
- High liquid loading → increase pad thickness or use vane-type eliminators
Example:
For a demister pad handling a vapor stream of 10,000 kg/h with a vapor density of 1.2 kg/m³ and liquid density of 800 kg/m³, and assuming K = 0.12 ft/s:
You can calculate allowable velocity, then determine the pad area:
V = 0.12 × sqrt[(800 – 1.2) / 1.2] ≈ 1.2 ft/s
This value helps size the pad cross-section to ensure safe operation.
Tip: Always consult with pad manufacturers or refer to process simulation tools when sizing for multi-phase systems or special operating conditions.
Applications in Various Industries
Demister pads find extensive applications across a broad spectrum of industries. In inlet scrubbers, they remove contaminants from gas streams, while in compressor systems, they aid in separating oil and water from compressed gas. Their role in three-phase separators and cold separators is crucial for separating hydrocarbons from water and gas. In natural gas processing and amine absorption columns, demister pads enhance the efficiency of gas treatment processes.
In steam drums, these pads play a vital role in separating water from steam, ensuring the quality of steam in power generation. Seawater desalination plants, flue gas desulfurization systems, and catalytic cracking processes in the petroleum industry also rely heavily on demister pads for efficient operation. Other applications include gas absorption and stripping, condensation, gas compression, dehumidification, drying, spray removal, crude oil distillation, and various desulfurization and refining processes.
Demister Pads in Scrubbers
In gas scrubbers, demister pads play a crucial role in improving separation efficiency and reducing emissions. Scrubbers are designed to remove particulates, chemical vapors, or acidic gases from industrial exhaust streams by contacting the gas with a liquid—often water or a chemical solution. However, this contact produces entrained mist that must be removed before the gas is discharged or sent to downstream equipment.
A demister pad is typically installed above the spray section or at the top of the scrubber tower, just before the outlet. Its job is to capture fine droplets that escape the liquid-gas contact zone. Without a demister, these droplets can carry over corrosive liquids, cause fouling, increase environmental discharge, or damage blowers and ducts.
The benefits of installing a demister pad in a scrubber include:
- Enhanced gas purity by removing residual mist and aerosols
- Protection of downstream equipment such as fans, heat exchangers, or stacks
- Reduced water and chemical loss from mist carryover
- Compliance with emission regulations by minimizing visible plumes
Depending on the scrubber design and flow characteristics, either wire mesh or vane-type demisters can be used. For high gas flow and larger droplets, vane packs are often preferred. In compact systems or where fine mist removal is critical, wire mesh pads provide better performance.
Proper sizing and positioning of the demister pad are essential to ensure low pressure drop and effective droplet capture. Regular inspection and cleaning are recommended to prevent clogging, especially in scrubbing systems handling sticky or particulate-laden streams.
Installation, Maintenance, and Best Practices for Using Demister Pads
Proper installation and ongoing maintenance of demister pads are essential for maintaining system efficiency, preventing equipment damage, and extending service life.
Installation Configurations
Demister pads can be installed in vertical or horizontal orientations, depending on the equipment layout and process flow direction. The two most common configurations are:
- Upload type: Installed beneath the gas flow; commonly used when the manhole is located below the pad.
- Download type: Installed above the gas flow; suitable when the manhole is positioned above the pad.
Pads are typically mounted on support grids or beams, with retainers or clips used to prevent shifting under gas velocity or turbulence. Correct alignment and sealing are important to avoid gas bypass, which reduces separation efficiency.
Best Practices for Use and Operation
To ensure reliable performance in day-to-day operation, consider the following best practices:
- Avoid oversizing or undersizing: Use proper sizing calculations based on gas velocity and droplet load. Undersized pads may cause flooding or high pressure drop, while oversized units take up unnecessary space.
- Prevent bypass leakage: Ensure pads are securely fastened and fully cover the gas flow path. Any gap can significantly reduce separation efficiency.
- Match pad type to process: Use wire mesh pads for fine mist removal and vane packs for high-flow or fouling-prone systems. Consider corrosive conditions when selecting materials.
- Position carefully in scrubbers: In wet scrubbers, place the pad above the spray zone to capture carryover mist and protect fans, ducts, or emissions stacks.
- Account for access during design: Leave enough clearance for inspection, removal, or replacement during shutdowns.
Maintenance and Inspection
Demister pads are generally low-maintenance components, but regular checks improve reliability:
- Inspection frequency: Perform visual inspection during scheduled plant maintenance—typically every 6 to 12 months, depending on the service.
- Cleaning: Pads can be cleaned with compressed air, steam, or chemical washing, depending on the contamination. Avoid mechanical force that may deform the mesh.
- Replacement indicators: Replace pads if you observe sagging, deformation, persistent high pressure drop, or visible corrosion or fouling that cannot be removed.
Their simple design, high durability, and ease of maintenance make demister pads a cost-effective choice for gas-liquid separation in industrial systems.
Conclusion
Demister pads are essential for removing fine liquid droplets from gas streams, ensuring cleaner output and protecting downstream systems. Choosing the right type, size, and material—and installing it correctly—can significantly improve separation efficiency and reduce maintenance costs.
Whether you’re working with columns, scrubbers, or separators, a well-designed demister pad makes all the difference.
