Wondering whether to use wedge wire or perforated filtration elements? It all comes down to what your system needs. Wedge wire filters are built for high pressure, fine particle capture, and demanding conditions. Perforated elements are better for simpler, lower-pressure tasks, especially when cost or sanitary standards are key.
This article explains how each type works, where they fit best, and what sets them apart. You’ll see real industrial examples and learn the key decision factors—like pressure limits, particle size, and total cost—to help you choose the right solution with clarity and confidence.
Understanding Wedge Wire Filters
What are Wedge Wire Filters?

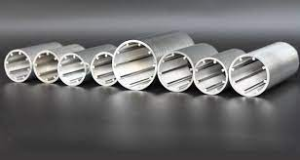

Wedge wire filters are a distinctive type of filtration element known for their robust construction and exceptional filtering performance. Constructed from stainless steel, these filters consist of a series of shaped wires, precision welded to support rods, forming a structure that resembles a wedge. This unique design allows for a continuous slot opening that efficiently separates particles from fluids.
The principle of operation for wedge wire filters is straightforward yet effective; as fluid flows through the filter, the wedge-shaped openings block particles larger than the slot size while allowing the cleaner fluid to pass through. Key features of these filters include their high structural strength, excellent precision, and the ability to withstand high-pressure differentials. The design not only optimizes the flow of liquid but also minimizes clogging, making wedge wire filters a preferred choice in numerous industrial applications.
Pros and Cons of Wedge Wire Filters
Wedge wire filters are widely used in industrial filtration, especially where strength and precision are critical. Like any technology, they come with both advantages and limitations. Understanding these pros and cons will help you decide if wedge wire is the right fit for your specific application.
Pros
- High strength and durability: Wedge wire filters are made to withstand high pressure and abrasive materials. Their welded structure resists wear and deformation, making them ideal for demanding industrial environments.
- Precision filtration: The continuous slot design allows for accurate particle separation, ensuring high product purity. This makes wedge wire especially useful in applications where fine filtration is critical.
- Low maintenance: Thanks to their non-clogging geometry, wedge wire filters require less frequent cleaning or replacement. The open slot design helps prevent buildup and keeps flow consistent.
- Long-term cost efficiency: Though the initial cost may be higher, their long service life and low maintenance needs translate into reduced downtime and better overall return on investment.
Cons
- Higher upfront cost: Compared to simpler filter types, wedge wire filters typically come with a higher initial price due to their complex manufacturing process.
- Limited flexibility in very fine filtration: For ultra-fine filtration below certain micron levels, wedge wire may not match the performance of filter media or membrane-based systems, unless customized.
Perforated Filtration Elements
Comparing with Perforated Filtration Elements
Overview of Perforated Filtration Elements
Perforated filtration elements are widely used in various industries for their versatility and efficiency in separating solids from liquids or gasses. These elements are made by puncturing a flat sheet of material, typically metal, with a pattern of holes. This method creates a mesh-like structure that filters particles based on size, allowing materials smaller than the holes to pass through while trapping larger ones.
The simplicity of their design and the ease of customizing the hole size and pattern make perforated filters adaptable to a broad range of applications, from water treatment to chemical processing. Their operational principle is straightforward: as the fluid or gas passes through the perforated sheet, the solid particles are intercepted, thereby achieving separation. This process relies on the mechanical strength of the sheet and the precision of the hole sizes for effective filtration.
In addition, perforated elements are widely used in sanitary applications requiring 3-A certification, such as dairy, food, and beverage processing. Their compliance with strict hygienic standards makes them a preferred choice where cleanability and regulatory approval are essential.
Pros and Cons of Perforated Filtration Elements
Perforated filtration elements are known for their simplicity, flexibility, and affordability. They’re widely used in applications where fine filtration isn’t critical, but cost efficiency and ease of customization are important. Below is a quick overview of their main strengths and limitations.
Pros
Cost-effective: Perforated elements are generally cheaper to produce and replace, making them ideal for systems with lower precision requirements or short operational cycles.
Customizable design: They can be manufactured in a wide range of hole sizes, patterns, and materials, offering great flexibility for different flow rates and particle sizes.
Suitable for sanitary applications: Many perforated filters can meet 3-A sanitary standards, making them a common choice in food, beverage, and pharmaceutical industries.
Good for large particle capture: They perform well in pre-filtration stages, where removing coarse solids helps protect downstream equipment.
Cons
Limited filtration precision: Perforated elements are not ideal for fine or critical filtration tasks unless paired with additional filter media or mesh overlays.
Higher clogging risk: Their flat, perforated surface can trap debris more easily, leading to more frequent cleaning or replacement in systems with high solids content.
Lower pressure and temperature resistance: Compared to wedge wire, perforated filters may deform or wear out faster in high-pressure or high-temperature environments.
Key Differences from Wedge Wire Filters
When comparing wedge wire filters with perforated filtration elements, several key differences emerge, particularly in terms of performance, durability, and application suitability. Wedge wire filters offer superior strength and durability due to their welded construction, making them ideal for high-pressure and abrasive environments.
Their continuous slot design allows for more efficient particle separation, minimizing clogging and maintenance requirements. In contrast, perforated filters, while versatile and customizable, may not withstand the same level of pressure and are more prone to clogging, requiring more frequent cleaning or replacement.
In terms of application suitability, the choice between wedge wire and perforated filters often depends on specific filtration needs. Wedge wire filters are preferred in applications requiring precise filtration under high pressure, such as in petrochemical processing or wastewater treatment.
On the other hand, perforated filtration elements are often chosen for simpler, less demanding applications where customization and cost are significant considerations, such as in air conditioning systems or automotive air filters. The selection between the two types hinges on assessing the balance between performance requirements and cost-effectiveness, with each type offering distinct advantages based on the particular context of use.
Filtration Flexibility: While wedge wire elements inherently offer precise filtration due to their slot geometry, perforated elements can also achieve finer filtration levels when used in combination with mesh overlays or additional filter media, making them adaptable in medium-demand environments.
Applications and Case Studies
Ideal Applications for Wedge Wire Filters
Wedge wire filters excel in environments where durability and precision are paramount. Industries such as water treatment, petrochemicals, food and beverage, and pharmaceuticals frequently benefit from the unique advantages these filters offer. For instance, in water treatment facilities, wedge wire filters are instrumental in screening out solids during the primary filtration process, significantly reducing the load on secondary treatments and thereby enhancing overall efficiency.
A case study in the petrochemical industry demonstrates the effectiveness of wedge wire filters in protecting downstream equipment by efficiently removing particulate matter from feedstocks, thereby minimizing maintenance downtime and extending the life of the equipment.
In the food and beverage industry, these filters are used for the precise separation of solids from liquids, ensuring clarity and purity in products such as beer, wine, and juices. The pharmaceutical industry, where product purity is critical, also sees significant benefits from using wedge wire filters to achieve high levels of filtration accuracy, critical for ensuring the safety and efficacy of pharmaceutical products.
Situations Favoring Perforated Filters
Perforated filters find their niche in applications where cost-effectiveness and simplicity are more critical than ultra-fine filtration. Industries such as automotive, HVAC (heating, ventilation, and air conditioning), and general manufacturing often opt for perforated filters for their ability to provide effective filtration at a lower cost.
For example, in the automotive industry, perforated filters are used in air filtration systems to protect engine components from particulate matter without the need for the high filtration precision that wedge wire filters offer.
In HVAC systems, these filters help in removing dust and other particulates from air streams, ensuring clean air distribution throughout buildings while maintaining system efficiency. A case study in a manufacturing facility demonstrated the use of perforated filters in protecting equipment from larger particulates in cooling and lubrication systems, showcasing their suitability for applications where larger particle removal is sufficient and cost savings are prioritized.
Each type of filter, wedge wire or perforated, has its ideal applications, guided by the specific requirements of the industry and the nature of the filtration process involved. These examples underscore the importance of selecting the right filtration technology based on the desired balance between performance, durability, and cost.
Furthermore, perforated filters are particularly effective at capturing large particles at earlier filtration stages, which helps prevent blockages and protects sensitive downstream equipment. This makes them a valuable option for pre-filtration systems in general manufacturing or process cooling lines.
Wedge Wire vs. Perforated Filtration Elements
| Feature | Wedge Wire Filters | Perforated Filters |
| Filtration Precision | Fine filtration | Coarse filtration |
| Clogging Resistance | Low clogging | Prone to clogging |
| Strength & Durability | High strength, abrasion-resistant | Moderate strength |
| Maintenance Needs | Low maintenance | Frequent cleaning |
| Sanitary Compliance | Conditional (depends on finish) | Suitable for 3-A certification |
| Customizability | Limited | High |
| Initial Cost | High | Low |
| Total Cost (TCO) | Lower over time | Higher over time |
| Ideal Applications | High pressure, fine solids, harsh media | Low pressure, large particles, sanitary systems |
Key Decision Factors Between Wedge Wire and Perforated Filtration Elements
Choosing between wedge wire and perforated filtration elements comes down to five essential factors: pressure and temperature, filtration precision, maintenance, sanitary compliance, and total cost. Below is what you need to consider to make the right decision quickly and confidently.
Pressure and Temperature
If your system operates under high pressure or elevated temperature, wedge wire is the safer choice. Its welded V-shaped wires handle mechanical and thermal stress better than perforated plates. Perforated filters are suitable for lower-pressure, steady environments but may deform under extreme conditions.
Filtration Precision
Wedge wire offers finer and more consistent filtration. Its continuous slot design blocks smaller particles and reduces clogging. Perforated filters have fixed-size holes and work well for larger particles. If needed, you can add mesh overlays to a perforated filter to improve precision, though it won’t match wedge wire performance.
Maintenance and Downtime
Wedge wire elements require less cleaning. Their non-clogging design means longer cycles between maintenance and fewer replacements. Perforated elements may clog faster, especially with high solids or sticky fluids, leading to more frequent shutdowns.
Sanitary Requirements
For food, beverage, or pharmaceutical processes that require 3-A sanitary certification, perforated filters are often the default. They’re easier to finish to hygienic standards. Wedge wire can be used too, but only if designed and polished to meet strict surface specifications.
Cost Over Time
Perforated filters cost less upfront, making them ideal for simple or short-term use. Wedge wire costs more initially but lasts longer, clogs less, and reduces downtime. If you calculate total cost of ownership (TCO), wedge wire is usually more economical for continuous or demanding operations.
In summary: Use wedge wire if your application is high-pressure, needs fine filtration, or runs continuously with limited maintenance access. Choose perforated when the system is low-pressure, requires sanitary compliance, or where upfront cost matters more than long-term durability.
FAQs
1. What are the main considerations when choosing between wedge wire and perforated filters?
The main considerations include the specific application requirements such as filtration precision, strength, and flow rate. Wedge wire filters offer higher precision and strength, suitable for demanding environments, whereas perforated filters are better for general applications with lower filtration precision needs.
2. How does the cost compare between wedge wire filters and perforated filtration elements?
Wedge wire filters generally cost more than perforated filtration elements due to their complex manufacturing process and higher precision. However, the increased durability and efficiency of wedge wire filters can lead to long-term savings.
3. Can wedge wire filters be customized for specific applications?
Yes, wedge wire filters can be highly customized to meet specific application requirements. This customization includes varying slot sizes, shapes, and materials to optimize performance for specific filtration tasks, making them versatile for a wide range of industries.
Comparing Wedge Wire, Perforated, and Mesh Screens
Wedge wire, perforated, and mesh screens differ in both structure and performance.
Wedge wire screens use V-shaped wires for continuous slot openings, ideal for precise, non-clogging filtration under high pressure.
Perforated screens are solid metal sheets punched with holes, better for strength and large particle capture.
Mesh screens are made of woven or welded wire and are best for fine filtration but less durable under stress.
Each type serves a different purpose depending on flow rate, particle size, and system pressure.
What Exactly Is a Wedge Screen?
A wedge screen is another name for a wedge wire screen. It consists of V-shaped wires welded to support rods, forming precise, slot-shaped openings. Wedge screens are widely used in continuous filtration, especially for solids separation in high-load or high-pressure systems.
Choosing the Best Type of Wire Mesh for Filtration
The best wire mesh depends on the filtration goal.
Woven wire mesh offers high precision and is suitable for fine particle capture.
Welded wire mesh provides strength and is used for structural support or coarse filtration.
There’s no universal “best”—selection depends on particle size, flow rate, and system demands.
Conclusion
In conclusion, the choice between wedge wire and perforated filtration elements is crucial for optimizing filtration performance across various applications. Wedge wire filters, with their precise filtration capabilities, robust construction, and customizability, are particularly suited for environments requiring high precision and durability. Though they come at a higher initial cost, their efficiency and long-term durability can offer significant savings over time.
Perforated filters, on the other hand, are more cost-effective and suitable for general applications where lower precision is acceptable. The decision should be guided by specific needs such as filtration efficiency, strength, and economic considerations. Ultimately, selecting the right filtration element—whether it be wedge wire or perforated—ensures operational efficiency, protects equipment, and maintains product quality.
This article underscores the importance of assessing each application’s unique requirements to leverage the distinct advantages of wedge wire filters in scenarios where their benefits outweigh the initial investment, ensuring optimal filtration performance.
